Lincoln Electric Flexcut 125 Plasma Cutting System
Clear Cut Performance. 460-600V 3Ph Input Voltage. 1-1/2″ Cut, 2-1/4″ Sever.
The FlexCut™ 125 delivers reliable, high-duty-cycle performance built for demanding industrial environments. Advanced CNC integration includes built-in ports, automatic table detection, and machine torch compatibility for seamless automated cutting.
With an industrial IP23-rated enclosure, reinforced components, and shock-resistant housing, it stands up to dust, water spray, and the rigors of daily use. Compatible with the FlexConnect™ Torch System, giving you the flexibility to switch between torch heads or cables in seconds.
The Lincoln Electric Flexcut 125 features an industry-best 5-Year Warranty
Value Added Features |
||
| •125 Amps of Cutting Power: Tackle thicker materials with confidence and precision | •High Duty Cycle: Built for demanding applications without overheating or slowing down. | |
| •LCD Display: Bright, easy-to-read screen with simple controls for quick and precise adjustments. | •Plug-and-Play CNC Integration: Seamless integration with CNC tables with automatic table detection for fast, precise setup. | |
| •Multi-Process Capability: Drag cutting, fine cutting, gouging, and marking with one machinefor maximum versatility. | •Portable Yet Rugged: Portable design without compromising strength—easy to move, hard to damage | |
| •Input Power Flexibility: Compatible with both 1-phase and 3-phase power | •Industrial IP23 Protection: Resists dust and water spray for dependable performance in challenging conditions. | |
Flexcut 125 Specifications
| Specification | Details |
| Product Number | K5828-H (Handheld) ,K5828-M (Mech) |
| Input Power | 400V – 600V (3-Phase, 50/60 Hz) |
| Rated Output | 125A / 100% Duty Cycle (at 400-600V, 3-PH) |
| Output Current Range | 30 – 125 Amps |
| Recommended Cut (Mild Steel) | 1-1/2″ (38 mm) @ 15 ipm |
| Maximum Cut (Mild Steel) | 1-3/4″ (44 mm) @ 10 ipm |
| Severance (Mild Steel) | 2-1/4″ (57 mm) @ 5 ipm |
| Pierce Thickness | 1″ (25 mm) |
| Air Pressure Required | 90 – 130 psi |
| Dimensions (H x W x D) | 27.2 in x 11.5 in x 18.6 in (691 x 292 x 472 mm) |
| Net Weight | 90.6 lbs (41 kg) |
| Torch Connection | FlexConnect™ Torch System |

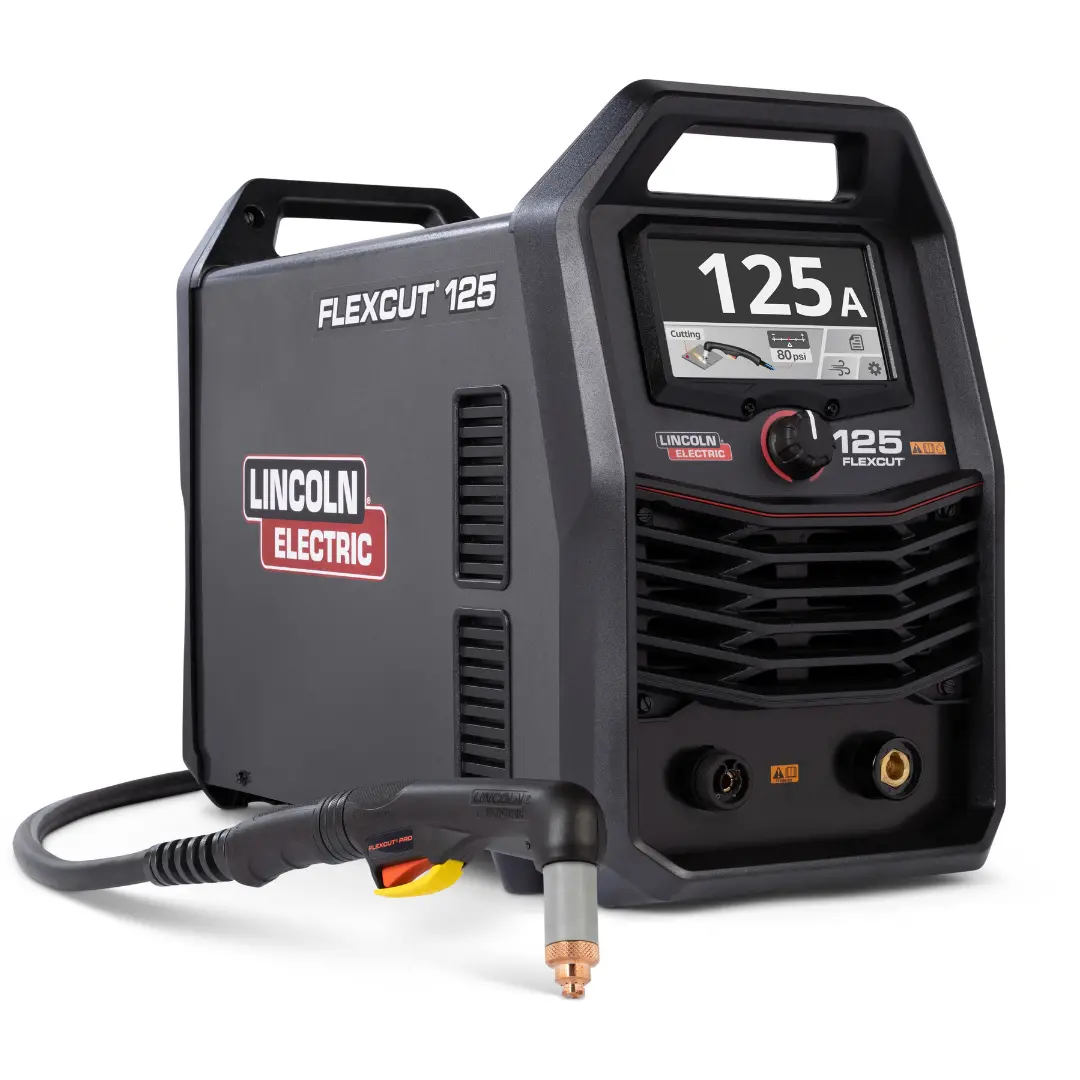

What’s Included (K5828-H Handheld Ready-Pak)
- (1) FlexCut 125 Plasma Cutter
- (1) FlexCut PRO FlexConnect Handheld Torch, 25 ft. (KP5850-25)
- (1) Air Filter (KP5844-1)
- (1) 125A Drag Cutting Consumables Kit (KP5829-125)
- (1) Ground Cable & Clamp (KP6035-1)
- (1) Input Power Cord

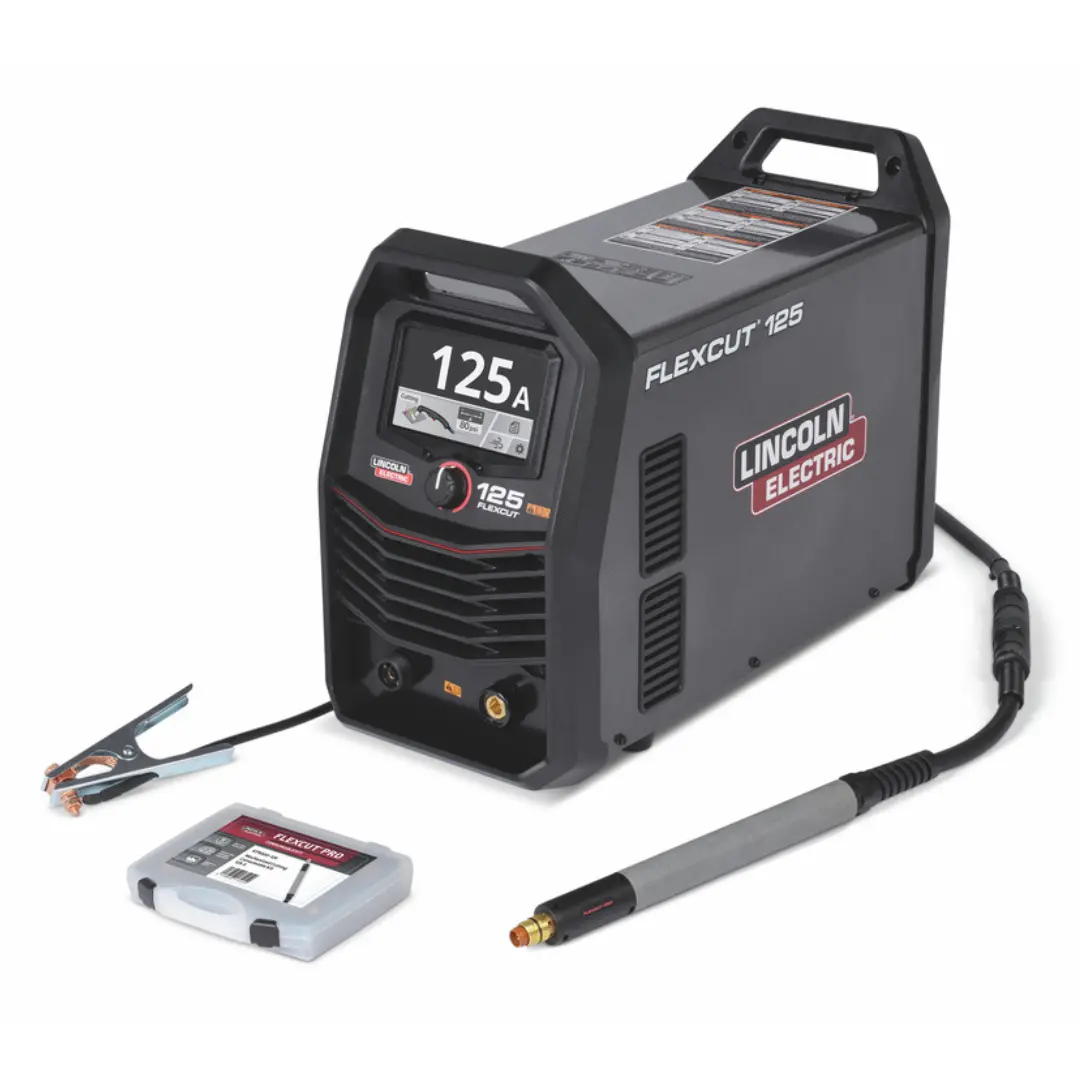

What’s Included (K5828-M Mechanized Ready-Pak)
- (1) FlexCut 125 Plasma Cutter
- (1) FlexCut PRO FlexConnect Mechanized Torch, 25 ft. (KP5852-25)
- (1) Air Filter (KP5844-1)
- (1) 125A Mechanized Cutting Consumables Kit (KP5830-125)
- (1) Ground Cable & Clamp (KP6035-1)
- (1) Input Power Cord
Full Product Data Sheet | All Lincoln Electric FlexCut Plasma Products
