Description
Miller Multimatic® 215 PRO Multiprocess Welder
120/240V MIG, Stick and DC TIG Welder. Welds up to 3/8″ steel and aluminum. Featuring advanced technologies like USB-enabled updates, Auto-Set™, higher duty cycle, 15’ MIG gun, and dinse connections—built to keep you welding all day, every day.
Key Features |
|
| Multiprocess | Includes MIG, flux-cored, DC TIG, and DC stick capabilities. |
| Auto-Set™ | Predefined settings for multiple materials and processes to help you get welding quickly. |
| Color LCD Display | Highly visible interface for adjusting parameters and viewing process selections. |
| Smooth-Start™ | Provides a smooth, spatter-free start for high-quality welds. |
| Multi-Voltage Plug (MVP™) | Allows connection to 120 V or 240 V receptacles without tools. |
| Angled Drive System | Cast-aluminum system with calibrated tension knob for consistent wire feeding. |
| Quick Select™ Drive Roll | Features three grooves for different wire sizes and types. |
| Fan-On-Demand™ | Cooling system operates only when needed to reduce noise and energy use. |
| USB Upgradeable | Software can be updated to expand capabilities without mechanical modifications. |
| Gas Detect | Detects shielding gas presence and displays alerts for supply issues. |
Available Packages and Part Numbers |
||
| Multimatic 215 PRO (Base) | Multimatic 215 PRO with Welding Cart | Multimatic 215 PRO with TIG Kit |
| 907840 | 951000074 | 951000213 |
| •Multimatic 215 PRO (120/240 V) •15 ft. MDX™-100 MIG gun •15 ft. electrode holder & 15 ft. work cable •6.5 ft. cord with MVP™ 120 V/240 V plugs •Flow gauge regulator & gas hose •Quick Select™ Drive roll (0.030″) •Contact tips (0.030″) |

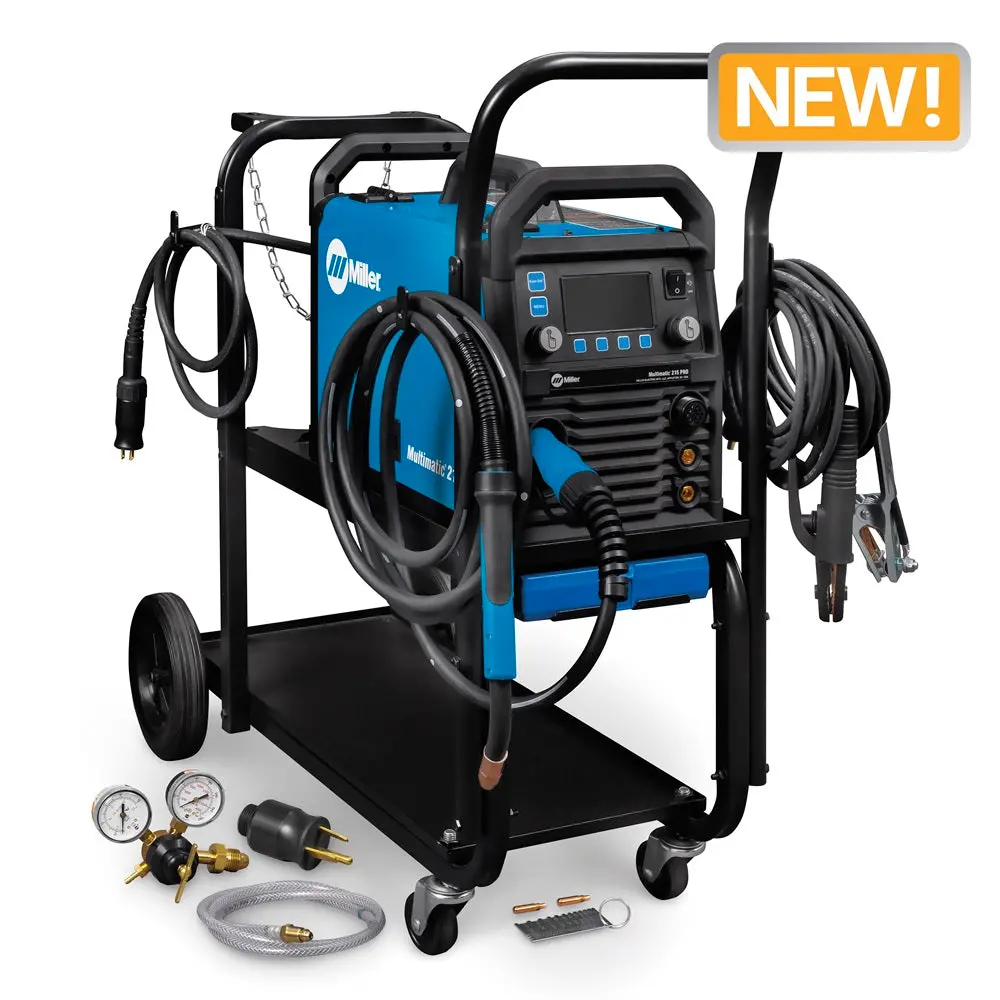

•Multimatic 215 PRO (120/240 V) •15 ft. MDX™-100 MIG gun •15 ft. electrode holder & 15 ft. work cable •6.5 ft. cord with MVP™ 120 V/240 V plugs •Flow gauge regulator & gas hose •Quick Select™ Drive roll (0.030″) •Contact tips (0.030″) •Running Gear/Cylinder Rack (301239) |

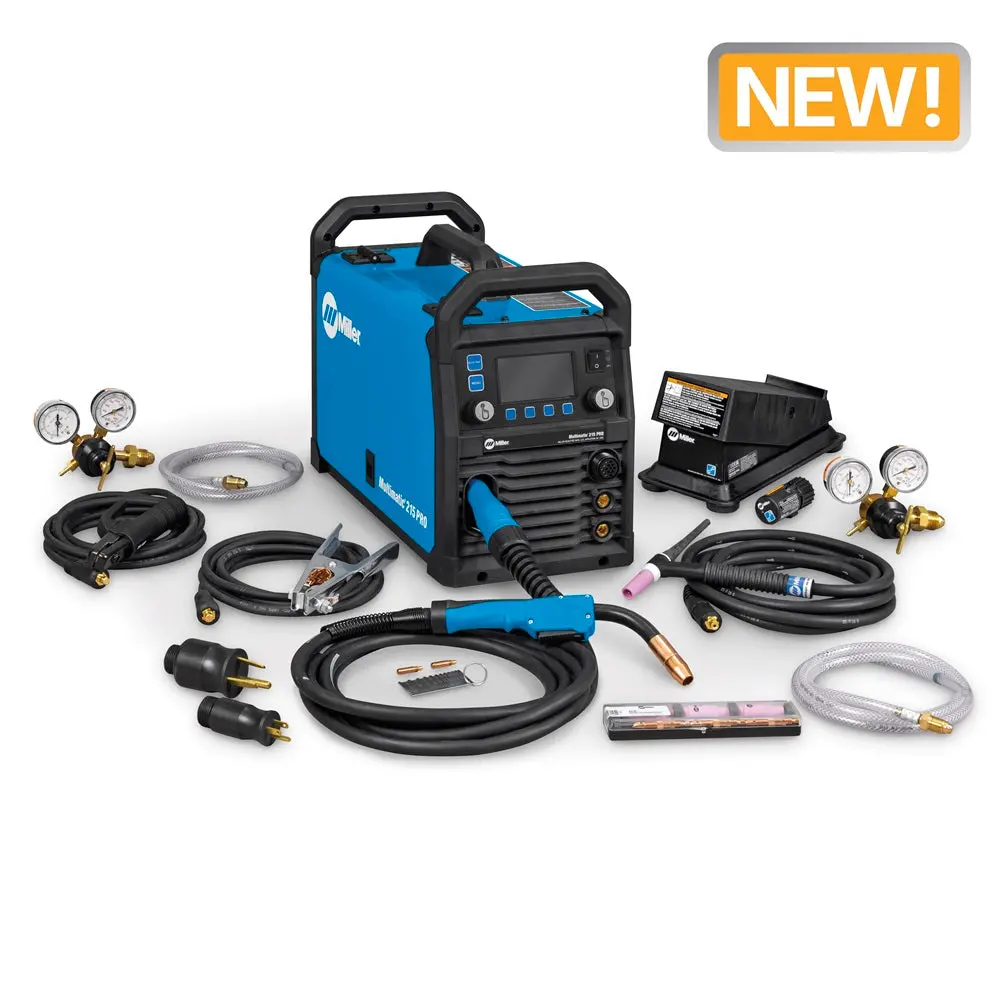

•Multimatic 215 PRO (120/240 V) •15 ft. MDX™-100 MIG gun •15 ft. electrode holder & 15 ft. work cable •6.5 ft. cord with MVP™ 120 V/240 V plugs •Flow gauge regulator & gas hose •Quick Select™ Drive roll (0.030″) •Contact tips (0.030″) •TIG Contractor Kit w/ Wireless Foot Control (301917) |
Multimatic 215 PRO Specifications |
|
| Input Power | 120 or 240 V, single-phase, 50/60 Hz. |
| Welding Amperage Range | MIG: 30–230 A; TIG: 20–210 A; Stick: 30–200 A. |
| MIG Rated Output (120 V) | 110 A at 19.5 VDC, 60% duty cycle. |
| MIG Rated Output (240 V) | 160 A at 22.0 VDC, 60% duty cycle 215 A at 24.8 VDC, 30% duty cycle. |
| Materials | Steel, Stainless, Aluminum |
| Aluminum TIG | Not Available |
| Rated Material Thickness | Mild Steel 24 ga. – 3/8 in. (MIG) Mild Steel 24 ga. – 1/4 in. (TIG) Mild Steel 16 ga. – 3/8 in. (Stick) Aluminum 18 ga. – 3/8 in (MIG) |
| Wire Feed Speed | 60–600 ipm (1.5–15.2 m/min.). |
| Max. Open-Circuit Voltage | 57 VDC. |
| Dimensions | H: 14.625 in. (372 mm) W: 9.75 in. (248 mm) D: 20 in. (508 mm). |
| Net Weight | 35 lb. (15.9 kg). |
Full Product Data Sheet | See All Multimatic® 215 PRO Accessories
