Description

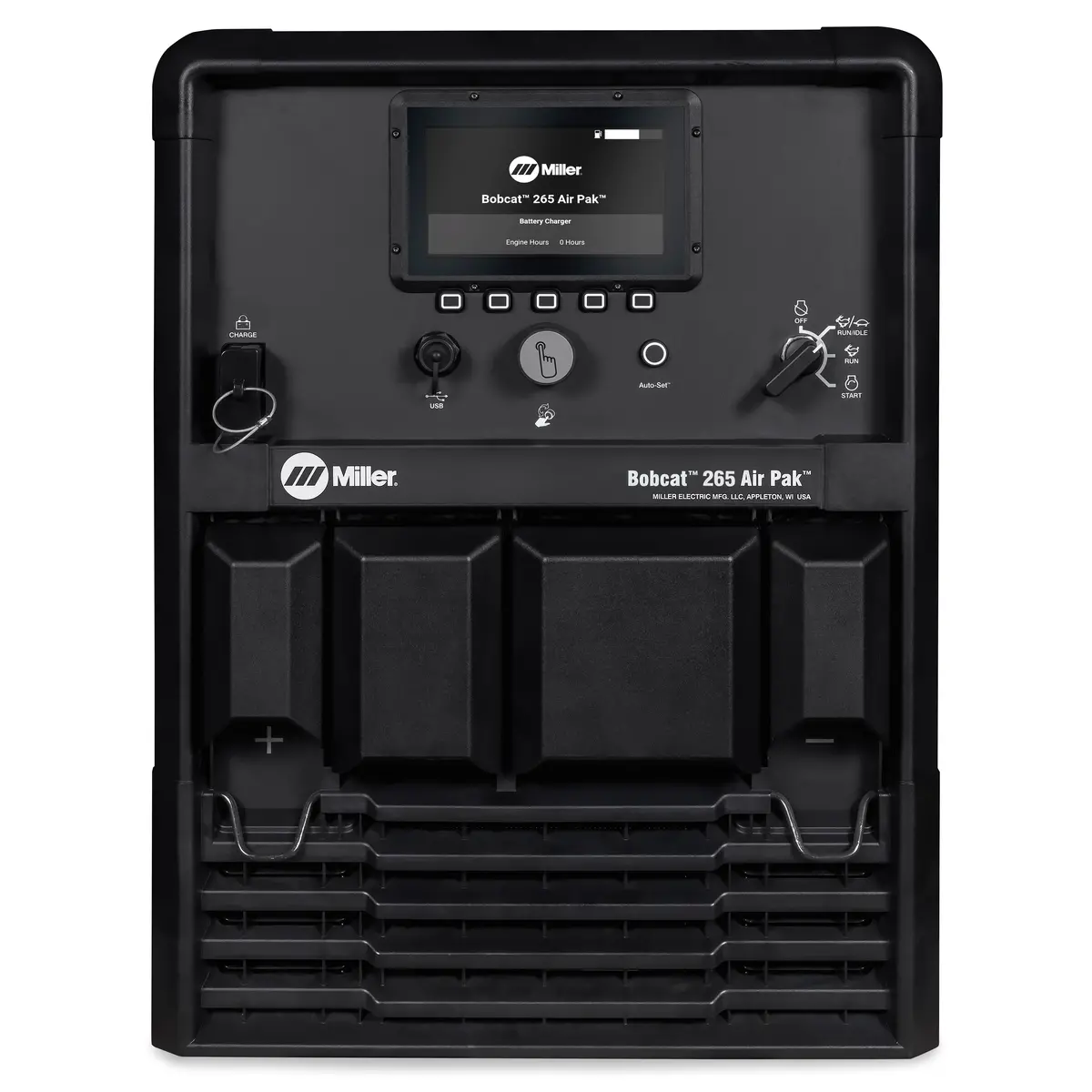

Miller Bobcat 265 Air Pak – 907876
Powerful all-in-one tool designed for repair and construction with multiprocess weld quality, auxiliary power, air compressor and battery charge/crank assist.
| Title | Bobcat™ 265 Air Pak™ w/Battery Charge/Crank Assist |
|---|---|
| Applications | Aluminum Welding Fabrication Field Welding Industrial Welding |
| Industries | Construction & Fabrication Heavy Equipment |
| Amperage | 20 A – 265 A |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Rated Carbon Diameter | 3/16 in (4.8 mm) |
| Current Type | DC |
| Max Open Circuit Voltage | 107 VDC |
| Portability | Lift Eye (Standard) |
| Engine Brand | Rehlko |
| Engine Idle Speed | 2400 RPM |
| Engine Weld Speed | 3,600 rpm |
| Fuel Tank Size | 11 Gallon |
| Fuel Type | Gasoline |
| Horsepower | 27 hp |
| Weld Output | CC/CV |
| Rated Output | CC/DC Stick/TIG 244 A at 29.8 V, 100% duty cycle, CV/DC MIG/FCAW 260 A at 27 V, 100% duty cycle |
| Single Phase Auxiliary Continuous Power | 9500 W |
| Single Phase Auxiliary Peak Power | 11000 W |
| Sound Rating | 69.5 dB @ 150 amps and 75.3 dB @ max weld |
| Compressor Brand | Rotary-Screw Compressor |
| Compressor Free Air Delivery | 30 cfm (0.85 m3 /min.) at 3,600 rpm / 28 cfm (0.79 m3 /min.) at 3,000 rpm |
| Compressor Working Pressure | 80-160 psig |
| Compressor Duty Cycle | 100% |
| Compressor Automatic Shutdown | High pressure (160 psi) |
| Battery Charge | 10-150 A |
| Crank Assist | 300 A, 12/24 V |
| Compressed Air | yes |
| Net Width | 20.46 in |
| Net Height | 27 in |
| Net Length | 51.88 in |
| Net Weight | 570 lbs |
| Warranty | 3 Years |
Full Product Spec Sheet
