Description

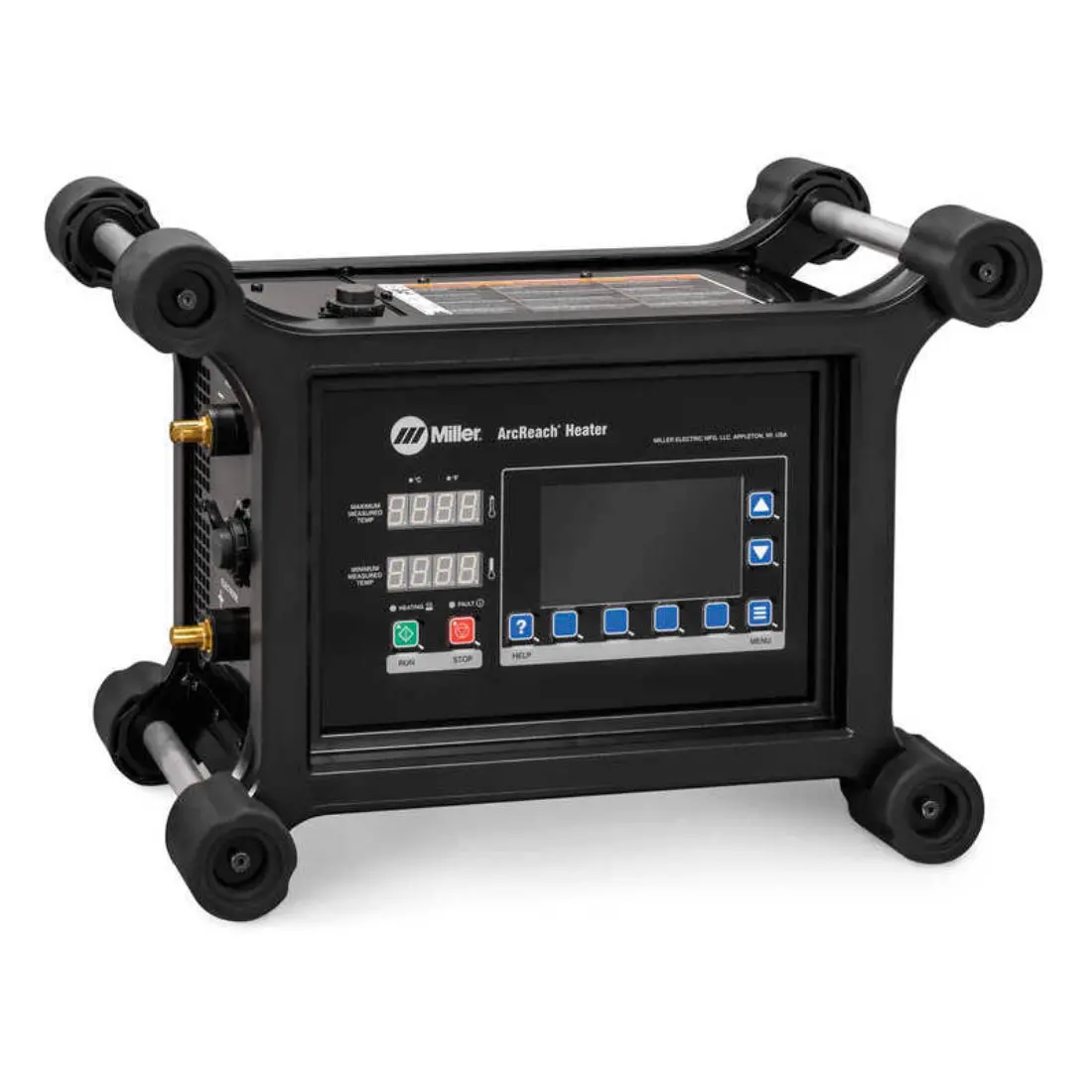

Miller ArcReach Heater
The ArcReach Heater is an air-cooled induction heating system designed for use with existing ArcReach-enabled welding power sources. This system allows for preheating and bake-out on pipe and plate applications without the need for additional power drops, flame heating, or resistance cables. It provides uniform heating and includes built-in temperature recording to assist with quality control and code requirements.
Features
- Field Portability: Connects directly to the welding leads of an ArcReach-compatible power source.
- Temperature Recording: Built-in data logger captures temperature profiles; data can be downloaded via USB.
- Safety: Eliminates open flames and reduces the risk of accidental burns compared to resistance heating.
- Efficiency: Achieves temperature faster than flame or resistance methods and maintains a 100% duty cycle.
- Remote Control: Adjust settings and monitor temperatures at the point of work using the ArcReach communication protocol.
- Versatile Tools: Compatible with air-cooled cables or Quick Wrap tools for various pipe sizes and configurations.
Not Included |
|
| • Air-Cooled Cable(s) | • High-Temperature Rope |
| • Preheat Insulation | • Thermocouple Wire |
| • Preheat Insulation with Cable Harness | • Thermocouple Connectors |
| • Cable Cover Sleeve(s) | • Thermocouple Attachment Unit |
| • Contact Thermocouple Sensor (probe) | |
Included in 951848 Extension Cable Package |
|
| ArcReach® Heater | 301390 |
| ArcReach® Heater Extension Cable | 301451 |

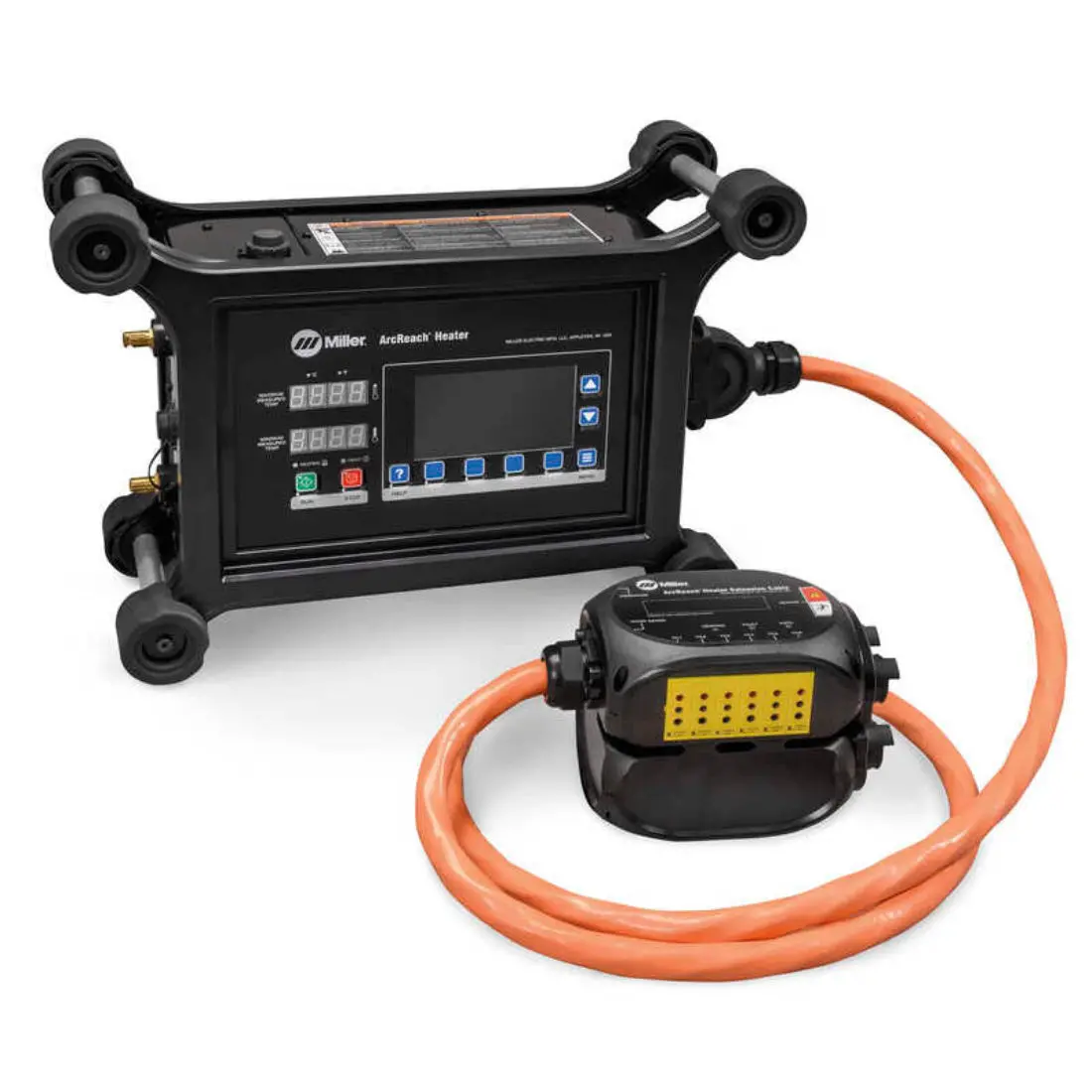

Included in 951849 Extension / Quick Wrap Package |
|
| ArcReach® Heater | 301390 |
| ArcReach® Heater Extension Cable | 301451 |
| Air-cooled Quick Wrap | 301452 (Qty 2) |
Compatibility
- Compatible with ArcReach power sources:
- XMT 350 FieldPro™ Series
- XMT 400 ArcReach®
- XMT 450 CC/CV ArcReach®
- XMT 650 ArcReach®
| Product Name | ArcReach Heater |
| Input Power | 50–70 VDC (from welding power source) |
| Rated Output | 7.8 kW at 100% Duty Cycle |
| Max Temperature | 600°F (315°C) |
| Output Frequency | 5 – 30 kHz |
| Output Current | 200 A |
| Weight | 43 lbs (20 kg) |
| Dimensions | 18.6″ H x 11.2″ W x 26.7″ D |
ArcReach Heater Data Sheet
