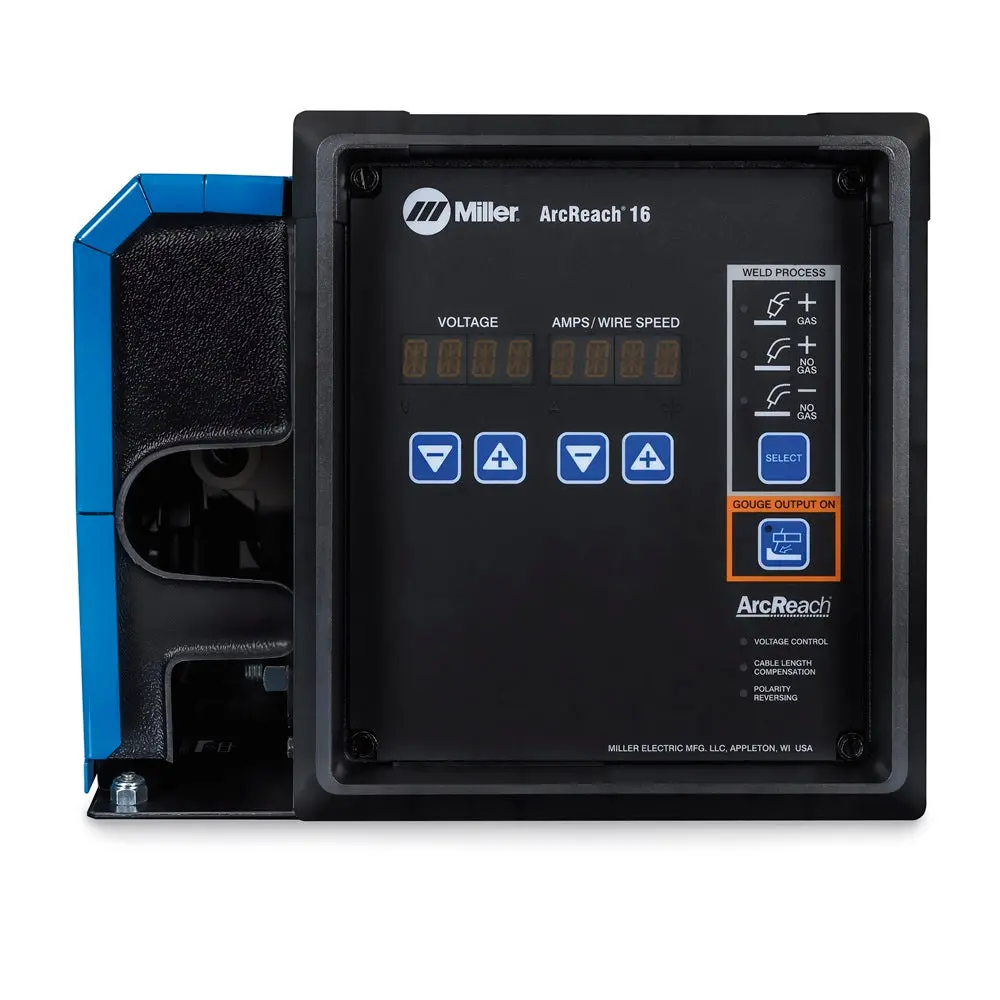

Miller ArcReach 16 Wire Feeder
The ArcReach® 16 is a heavy-duty, voltage-sensing wire feeder designed to maximize productivity in the most demanding environments like shipbuilding, construction, and heavy manufacturing. By utilizing Miller’s game-changing ArcReach technology, operators can adjust weld parameters at the feeder without the need for a control cord, significantly reducing downtime and improving jobsite safety.
Features
- ArcReach® Technology: Provides complete control of the power source at the wire feeder through the existing weld cable. No control cords are required, eliminating a common cause of equipment failure and trip hazards.
- Easy Process Changeover: Switch between welding and gouging with a simple button push on the feeder. The integrated gouging stud allows for quick connection at the point of use.
- Cable Length Compensation (CLC™): Automatically adjusts the voltage based on the length of the weld cables to ensure the voltage you set at the feeder is the voltage you get at the arc.
- Superior Wire Feed Accuracy: A heavy-duty drive motor with tachometer control provides consistent wire feed speed from the start of the weld to the finish, even with large-diameter wires.
- High-Capacity Productivity: Supports large wire spools up to 60 lbs (27.2 kg) and wire diameters up to 3/32 in. (2.4 mm) to minimize spool changes.
- Durable & Rugged: Rated IP23 for protection against solid objects and water spray. Includes a wide voltage range (12–110 VDC) to handle small and large wires without contactor chatter.
Available Configurations and Part Numbers |
||
| Part Number | Model / Configuration | Weight |
| 301619 | ArcReach 16 (Base Feeder) | 101 lb. (45.8 kg) |

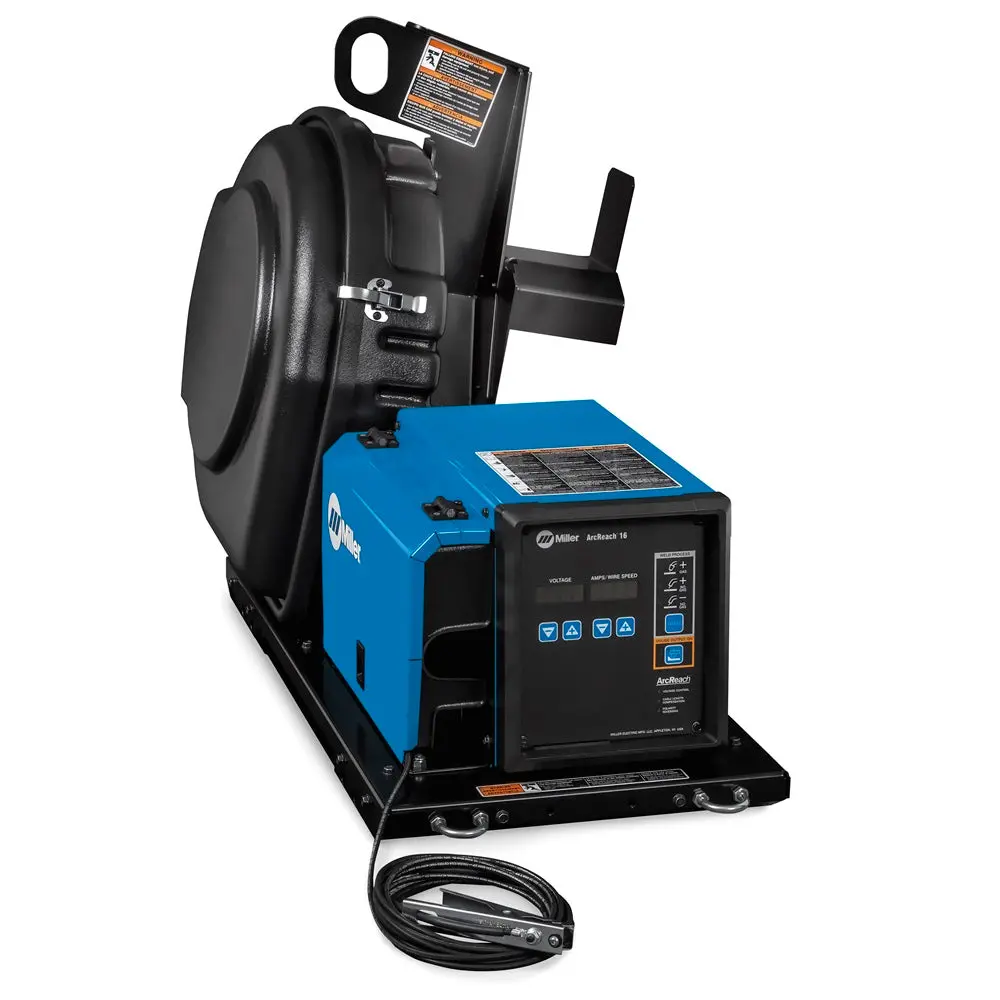

| 301663 | Feeder w/ Integrated Field Roller | 123 lb. (55.7 kg) |

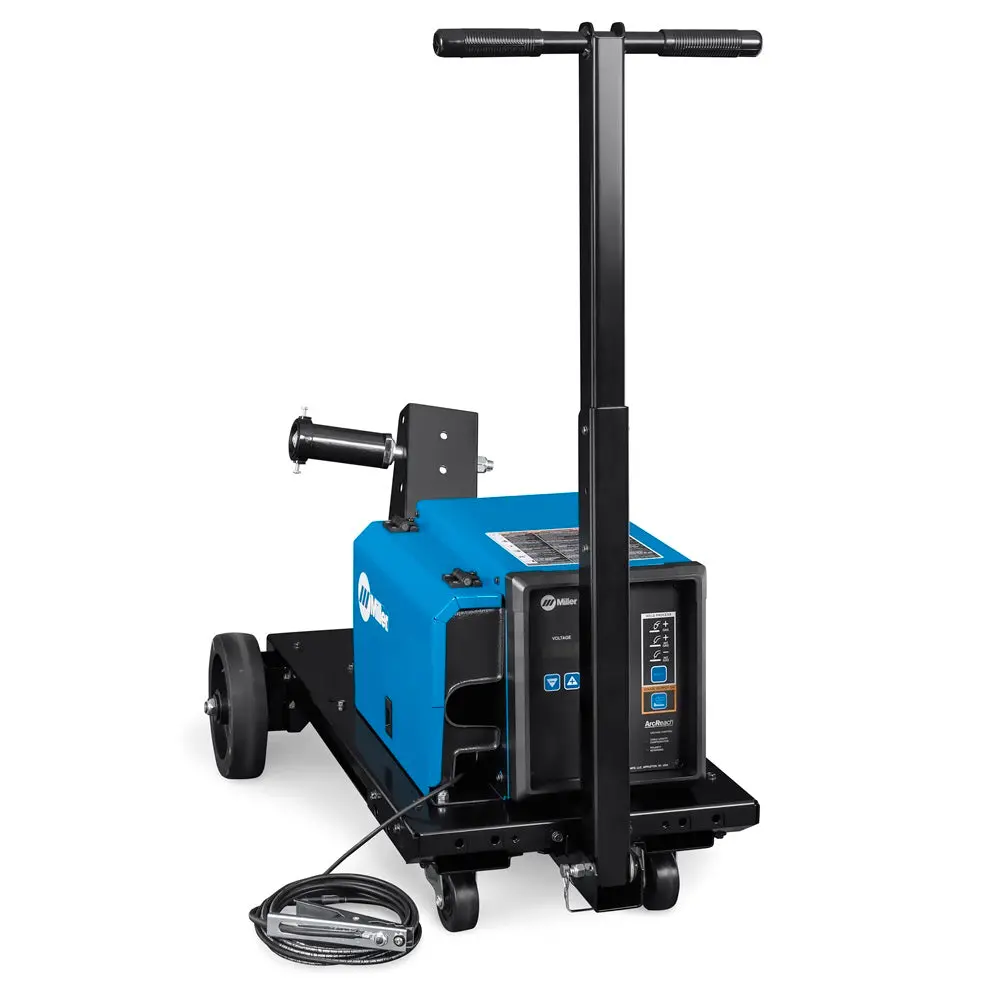

| 301664 | Feeder w/ Shop Cart | 120 lb. (54.4 kg) |
| 951000065 | Feeder w/ Shop Cart & BTB 500 Gun | 125 lb. (56.7 kg) |
| Note: Drive rolls and MIG guns are generally sold separately to allow for customization based on your specific wire type and diameter, unless purchased as part of a bundled package (e.g., #951000065) | ||
Compatibility
- Compatible with ArcReach power sources:
- XMT 350 FieldPro™ Series
- XMT 400 ArcReach®
- XMT 450 CC/CV ArcReach®
- XMT 650 ArcReach®
| Feature | Specification |
| Input Connections | Open Circuit Voltage (OCV): 12–110 VDC |
| Wire Feed Speed | 50–780 ipm (1.3–19.8 m/min) |
| Wire Diameter Capacity | Solid: .035–5/64 in (0.9–1.9 mm) Flux-Cored: .045–3/32 in (1.1–2.4 mm) |
| Max Spool Size Capacity | 18 in (457 mm) diameter / 60 lb (27.2 kg) |
| Input Welding Circuit Rating | 600 Amps at 60% Duty Cycle |
| Dimensions | H: 18.5 in (470 mm) W: 13 in (330 mm) D: 31 in (787 mm) |
| Enclosure Rating | IP23 Resistant |
| Standard Warranty | Miller True Blue® 3-Year |
ArcReach Feeders Data Sheet
