Description

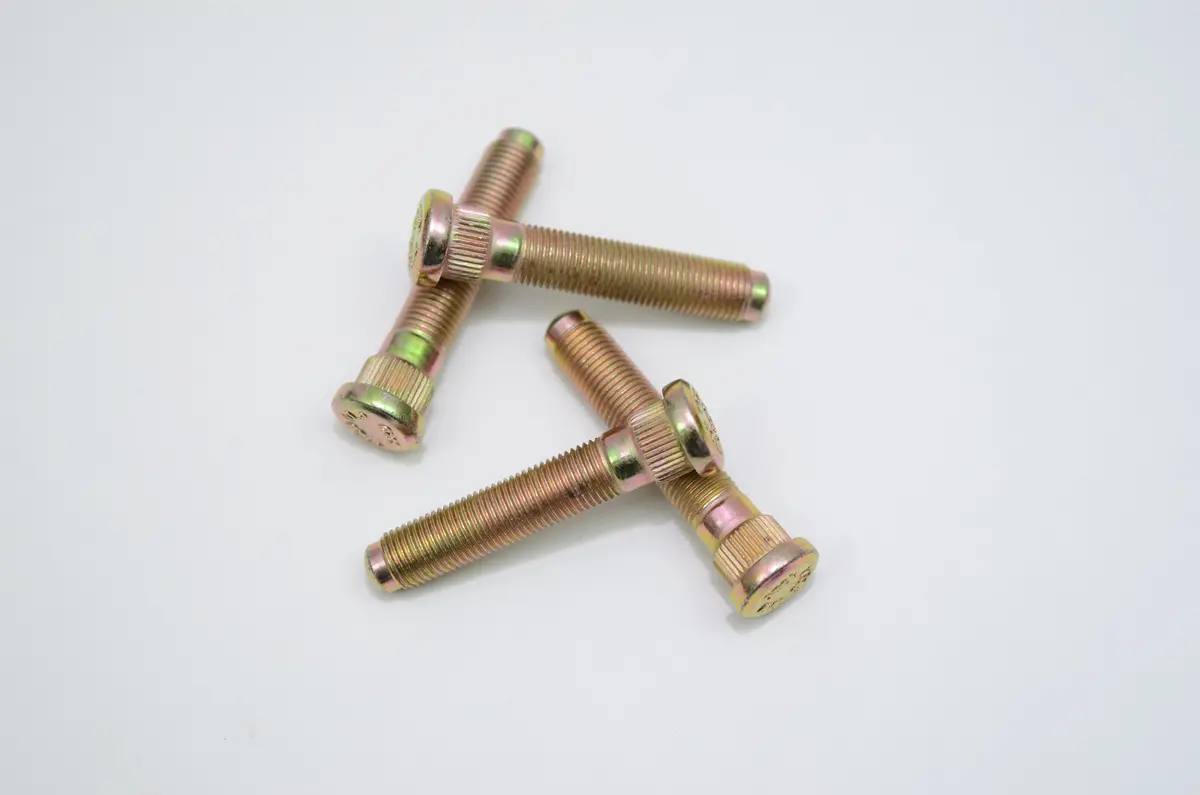

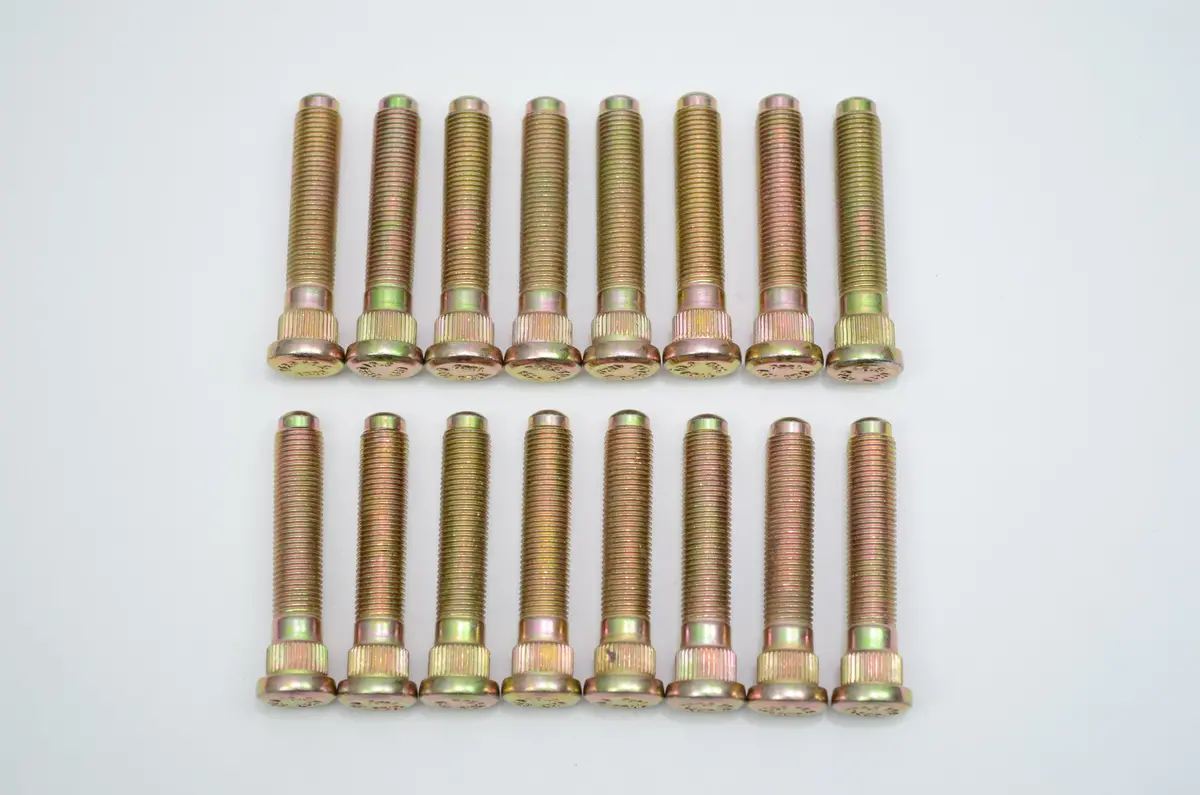

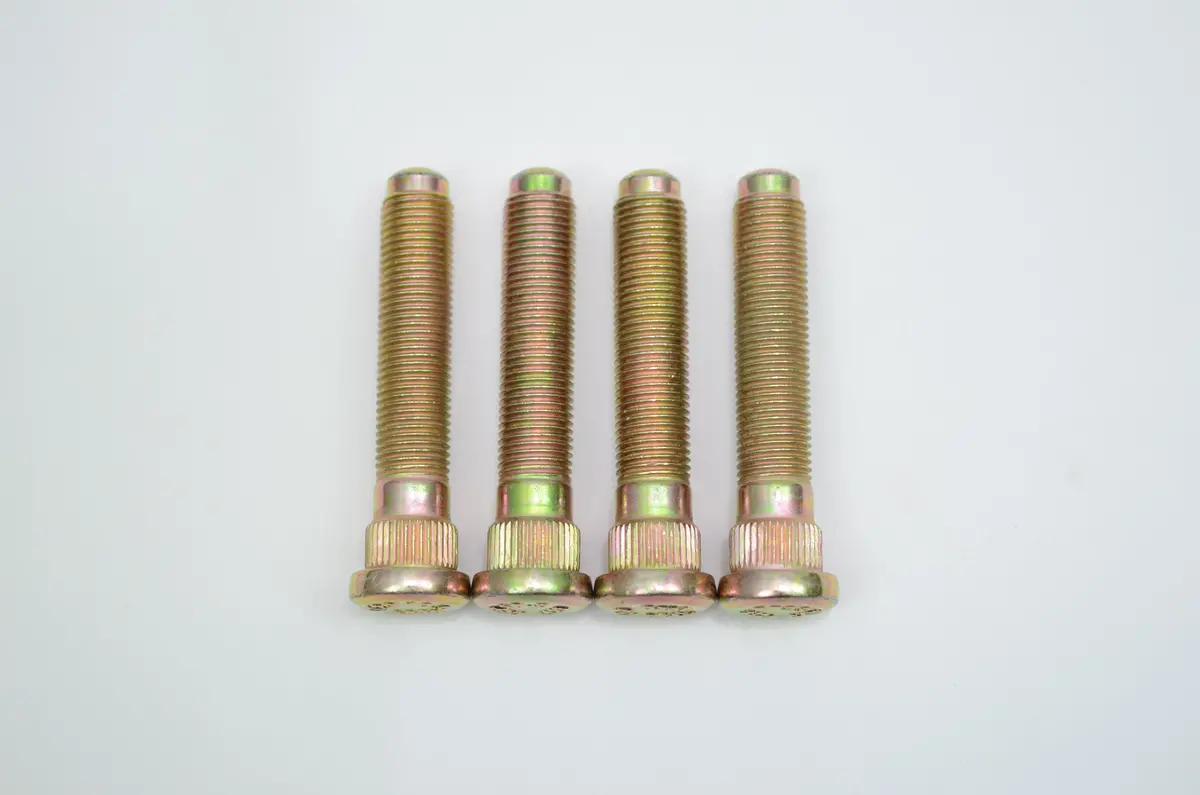

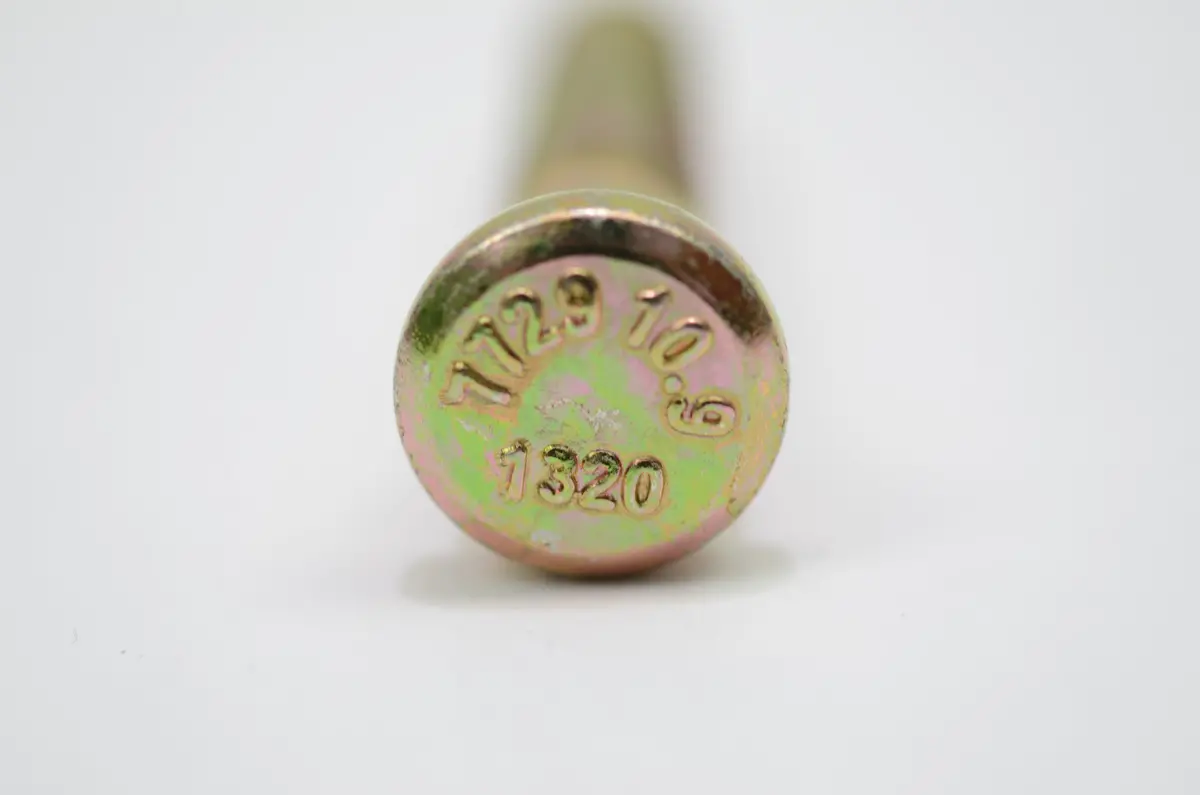

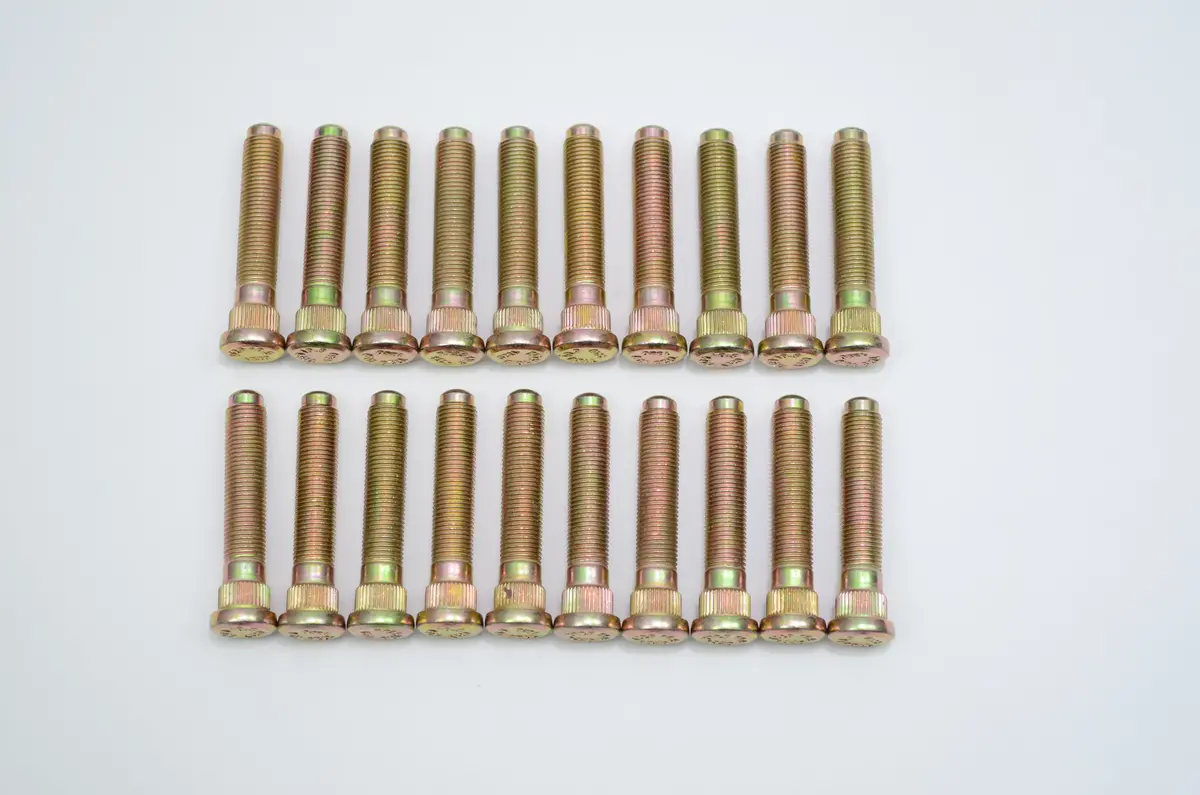

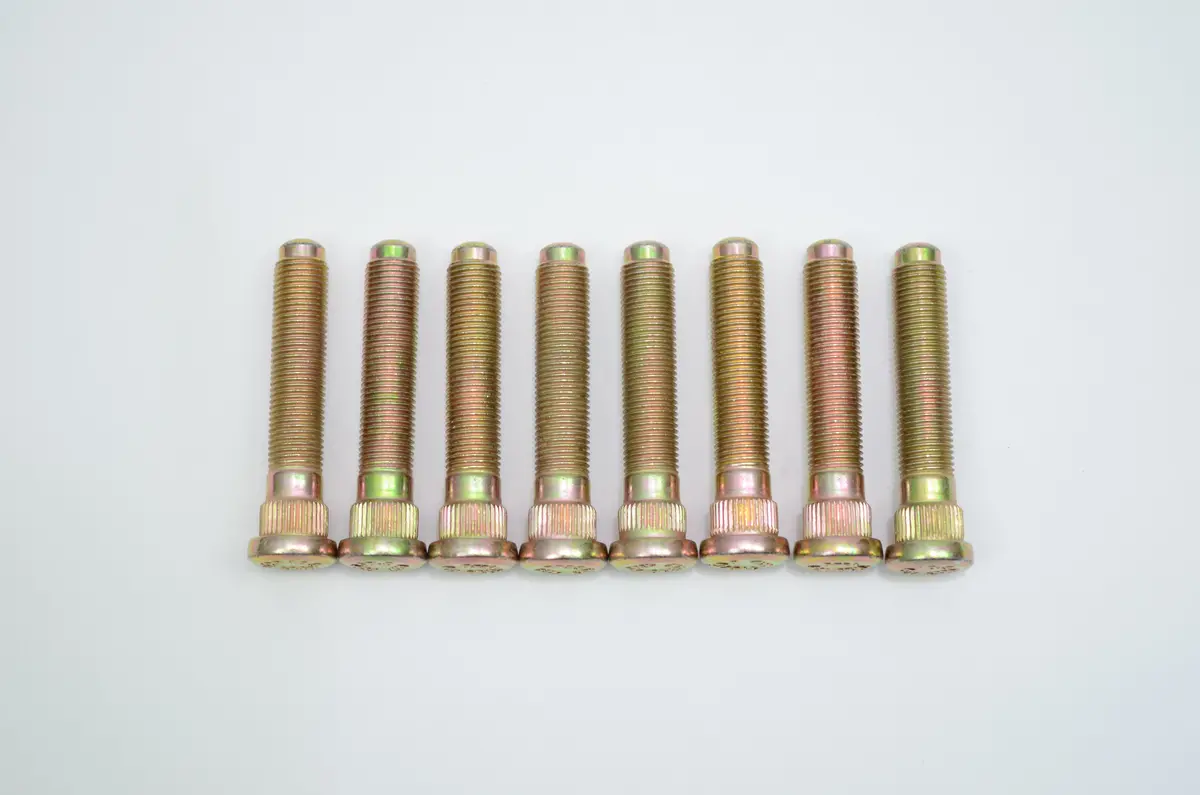

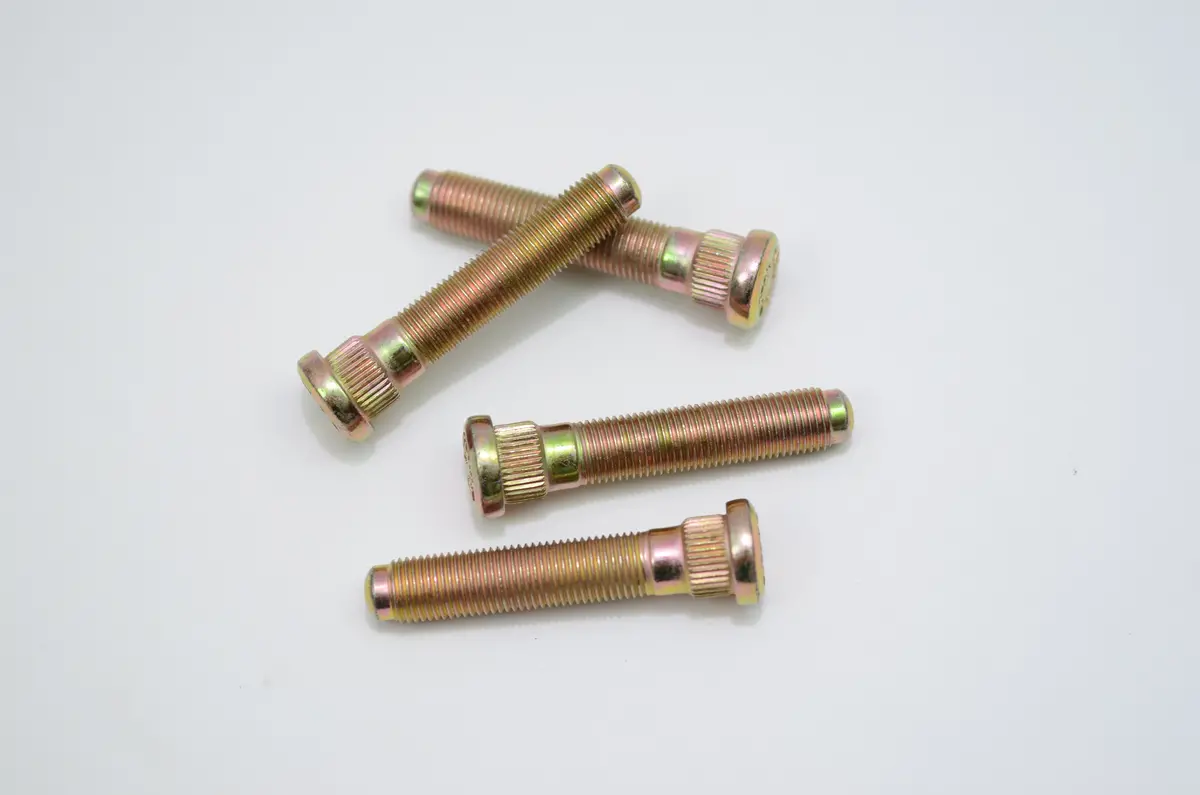

1320 Performance Extended wheel studs. 1320 Performance extended wheels studs are manufactured using high-strength alloy steel.
FITMENT: Designed to Subaru WRX/BRZ Tribeca 10-12, Ascent 19-21, Forester 10-18, Impreza 06-21, STI 05-14, Legacy 08-19 Outback08-12 & Scion FRS
PRODUCT DESCRIPTIONS
1320 Performance extended wheels studs are manufactured using high-strength 10.9 Grade alloy steel.
These
extended wheel studs are designed and intended to be used with any
open-ended lug nuts on racing slicks, or when wheel spacers are
required.
Our extended stud replacements are designed to press-fit into the original hole in the OEM hub with a hydraulic press, Aftermarket hub might have a different Knurl diameter than stock so they are not recommended.
| Specifications | |
|---|---|
| Knurl Diameter | 0.565˝ |
| UHL | 2.535˝ |
| Knurl Length | 0.270˝ |
| Nose Length | 0.200˝ |
| Thread Size | M12 x 1.25 |
| Wheel Stud Hole Size – Cast Iron/Steel Hub | 0.549˝ – 0.559˝ |
| Cast Iron/Steel Hub Drill Bit Size (actual dim.) | 14mm (0.551˝) |
| Wheel Stud Hole Size – Aluminum Hub | 0.549˝ – 0.555˝ |
| Aluminum Hub Drill Bit Size (actual dim.) | 14mm (0.551˝) |
