InterPurge Diffusers for Maxi and Mini Systems
Achieve X-Ray Quality Welds with Laminar Flow
The Interpurge Diffuser is the secret to high-purity pipe welding. When purging stainless steel, titanium, or nickel alloys, any turbulence in the gas flow can pull oxygen back into the weld zone, leading to “sugar” (oxidation) and weld failure.
These diffusers are constructed from a high-quality sintered stainless steel media that breaks up the concentrated stream of gas, transforming it into a gentle, uniform, and laminar “cloud.” This allows the argon to displace oxygen more efficiently, reducing purge times and gas consumption while ensuring a mirror-like root pass.
Key Features
- Laminar Flow Technology: Prevents “venturi effect” turbulence that draws in atmospheric oxygen
- Reduced Gas Consumption: Displaces oxygen faster than open hoses or tubes, saving you money on every joint.
- Sintered Stainless Steel: Durable, heat-resistant, and won’t contaminate high-purity systems (Food, Pharma, Semiconductor).
- Universal Compatibility: Can be used as a standalone tool or integrated into custom purging dams and bladders.
- High-Purity Results: Essential for meeting AWS and ASME standards for orbital and manual TIG welding.
Usage Considerations
When using a diffuser, always ensure your exit vent (purge hole) is located at the highest point of the weld joint, as Argon is heavier than air. This allows the diffuser to “fill the pipe like a glass of water,” pushing the oxygen out the top for a 100% inert environment in record time.
Available Options and Part Numbers (Sold Individually)
| Part Number | Model No. | System Compatibility | Connection | Diameter | Length |
| IP-P-P50-010-500 | No. 3 | Mini Purge System (Barb) | Hose Barb | 3/8″ (10mm) | 2″ (50mm) |
| IP-P-P50-022-500 | No. 3.5 | Mini Purge System (Barb) | Hose Barb | 13/16″ (22mm) | 2″ (50mm) |

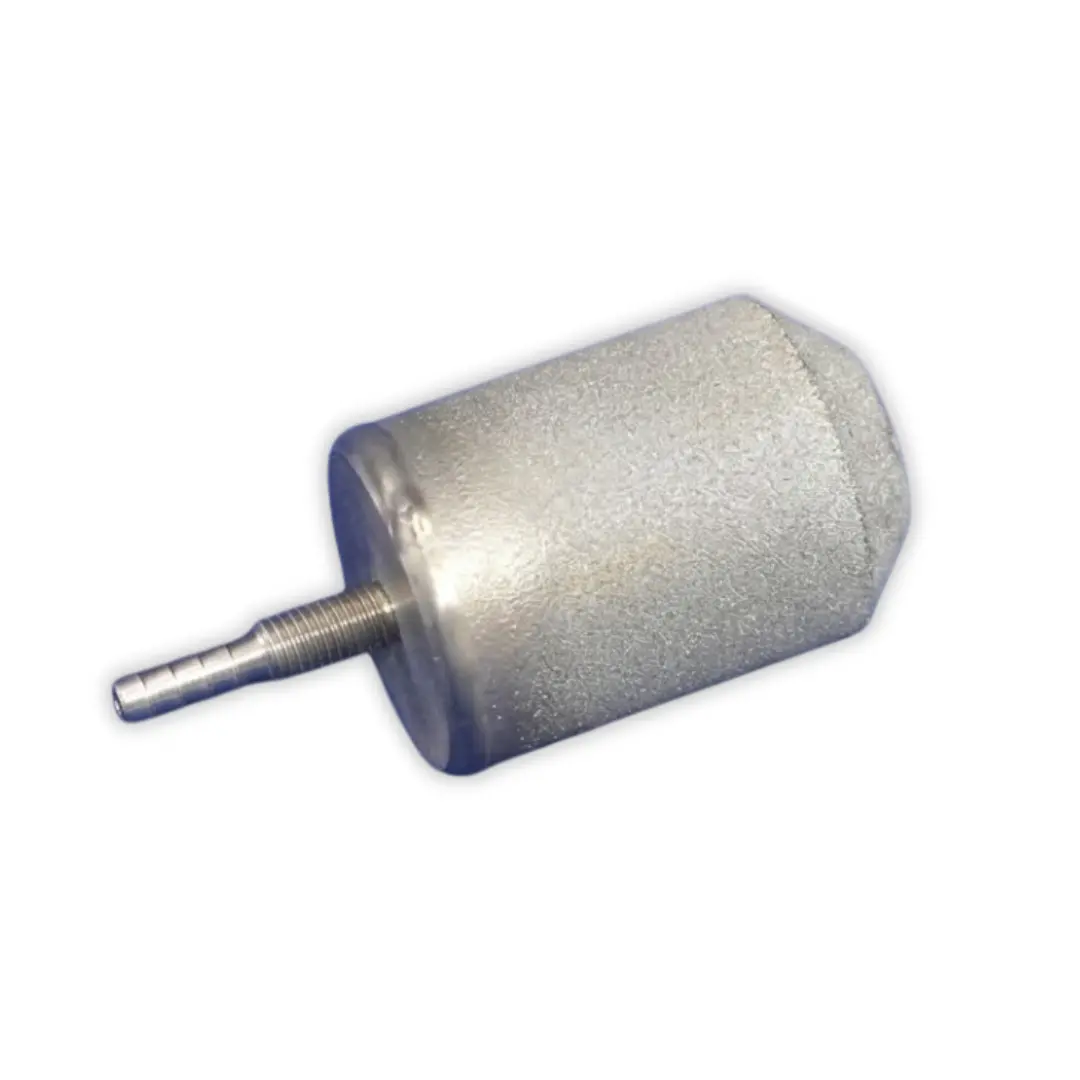

| IP-P-P50-036-500 | No. 3.8 | Mini Purge System (Barb) | Hose Barb | 1-3/8″ (36mm) | 2″ (50mm) |

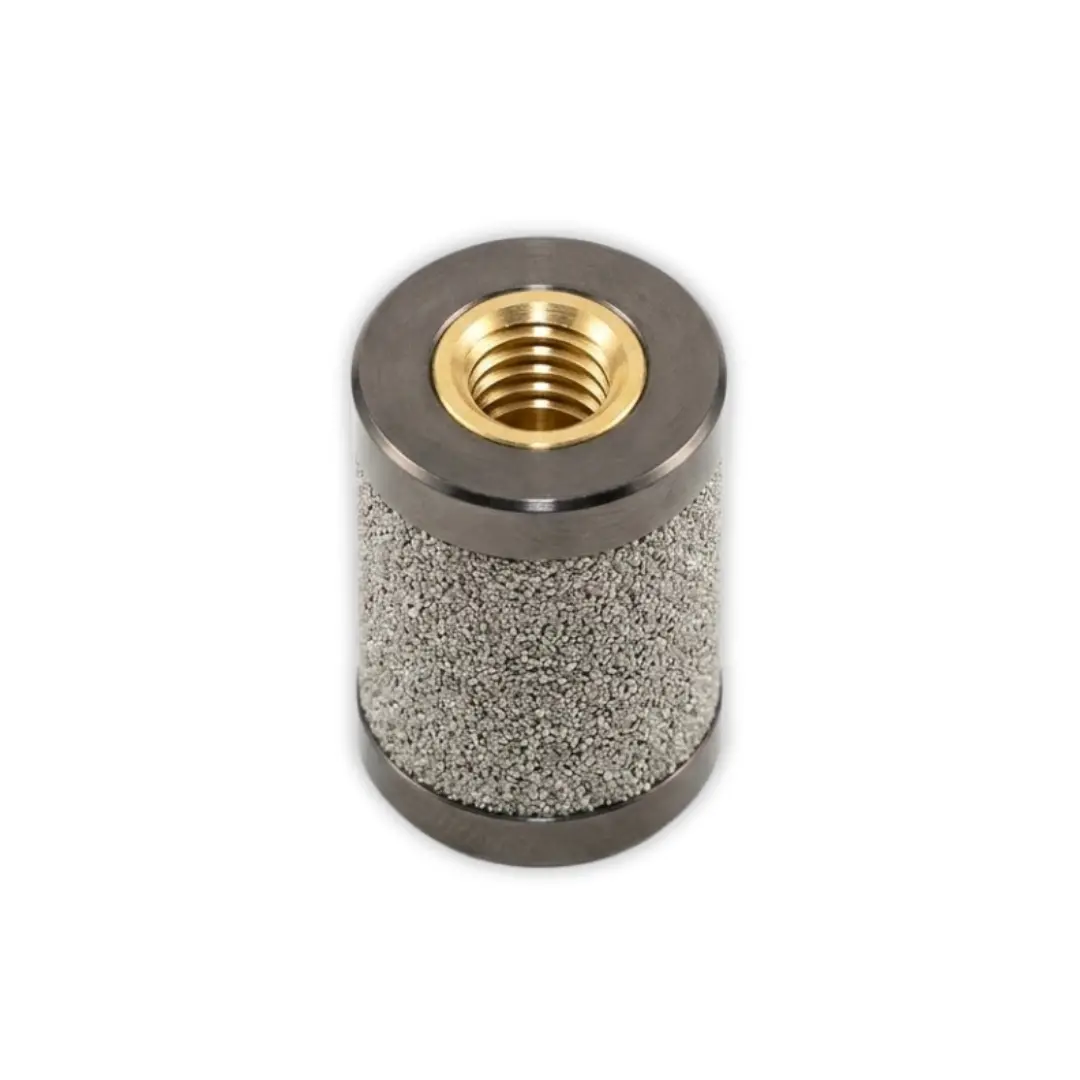

| IP-P-P50-027-406 | No. 4 | Maxi Purge System | 1/4″ NPT Female | 1-1/16″ (27mm) | 1-9/16″ (40mm) |

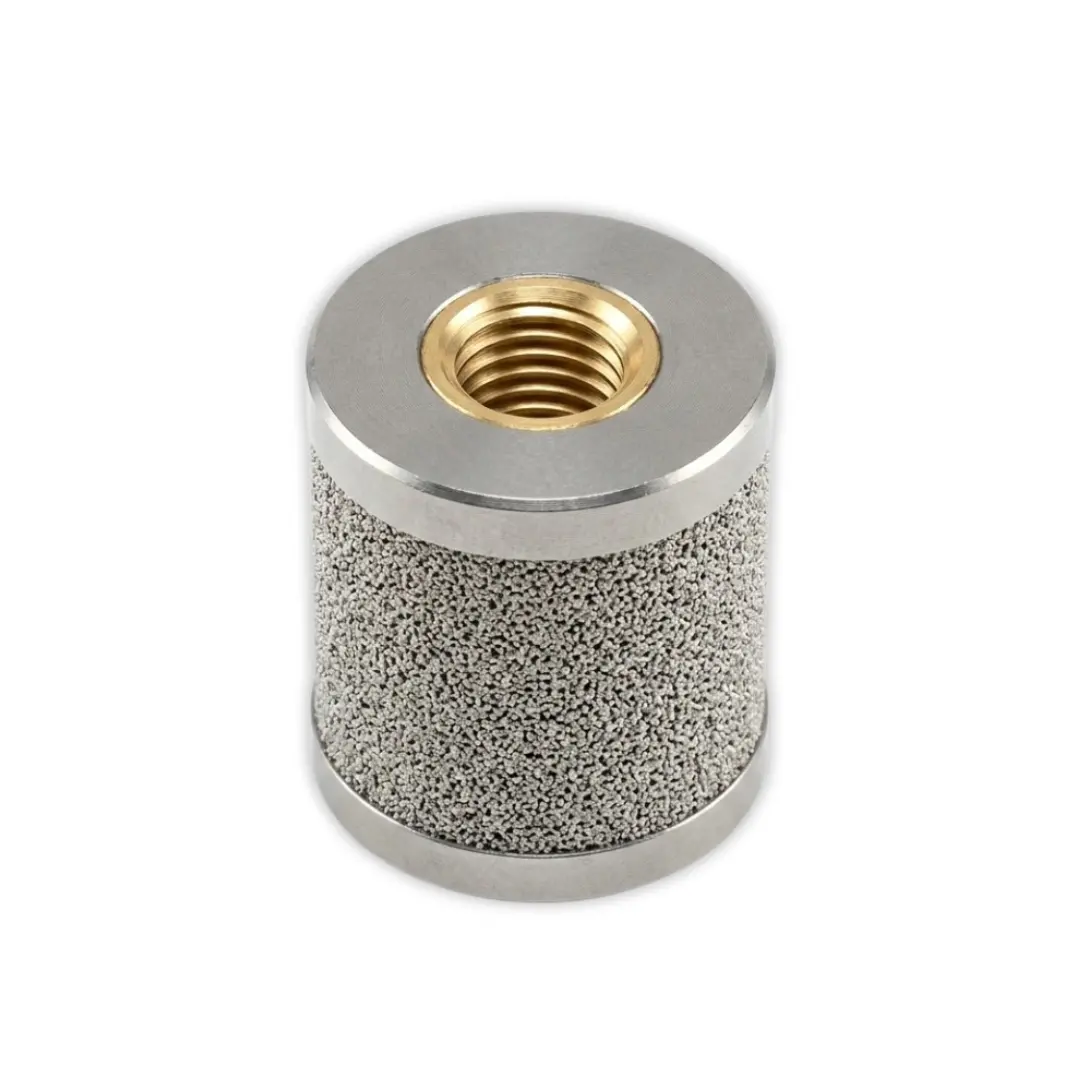

| IP-P-P50-036-406 | No. 5 | Maxi Purge System | 1/4″ NPT Female | 1-3/8″ (36mm) | 1-9/16″ (40mm) |

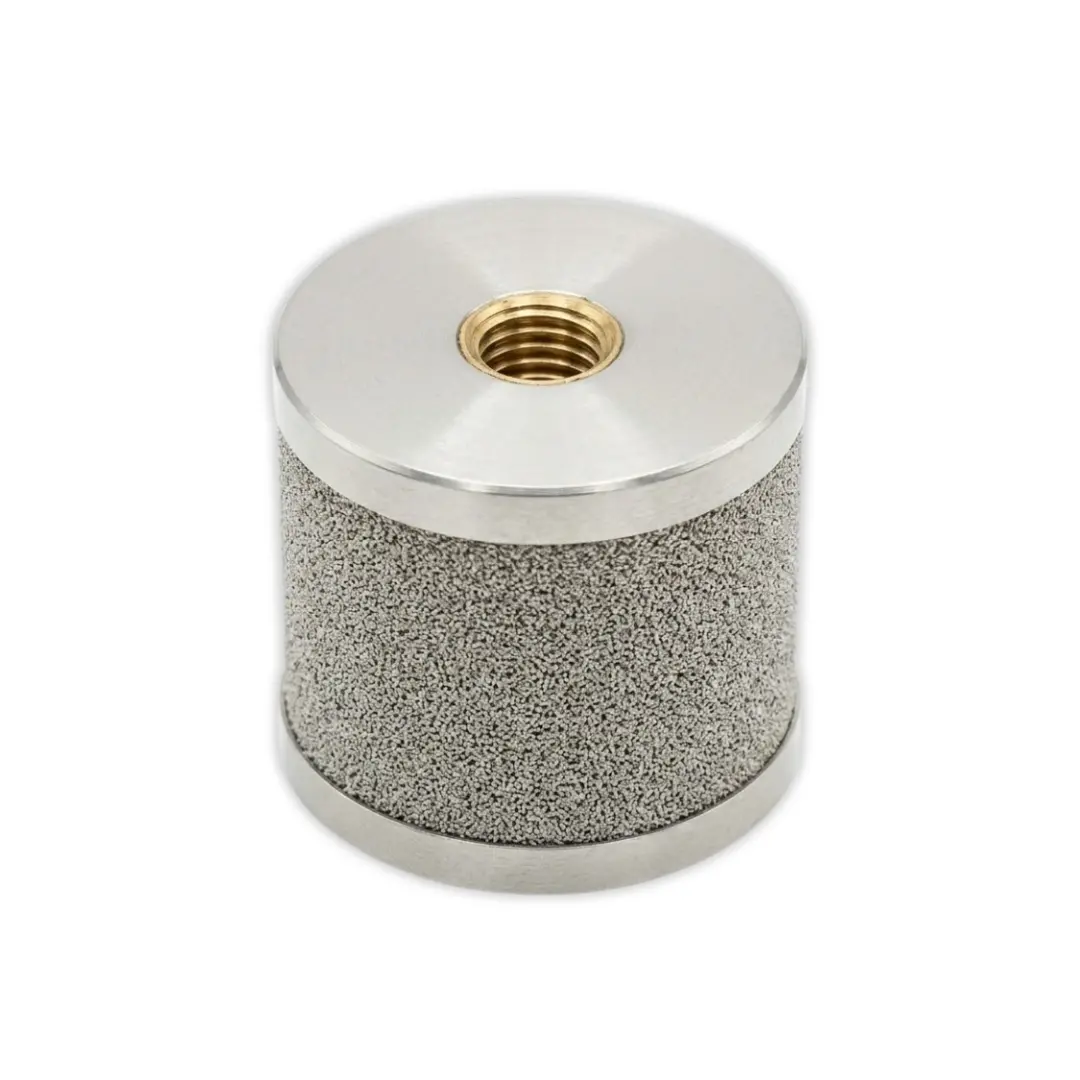

| IP-P-P50-044-406 | No. 6 | Maxi Purge System | 1/4″ NPT Female | 1-3/4″ (44mm) | 1-9/16″ (40mm) |

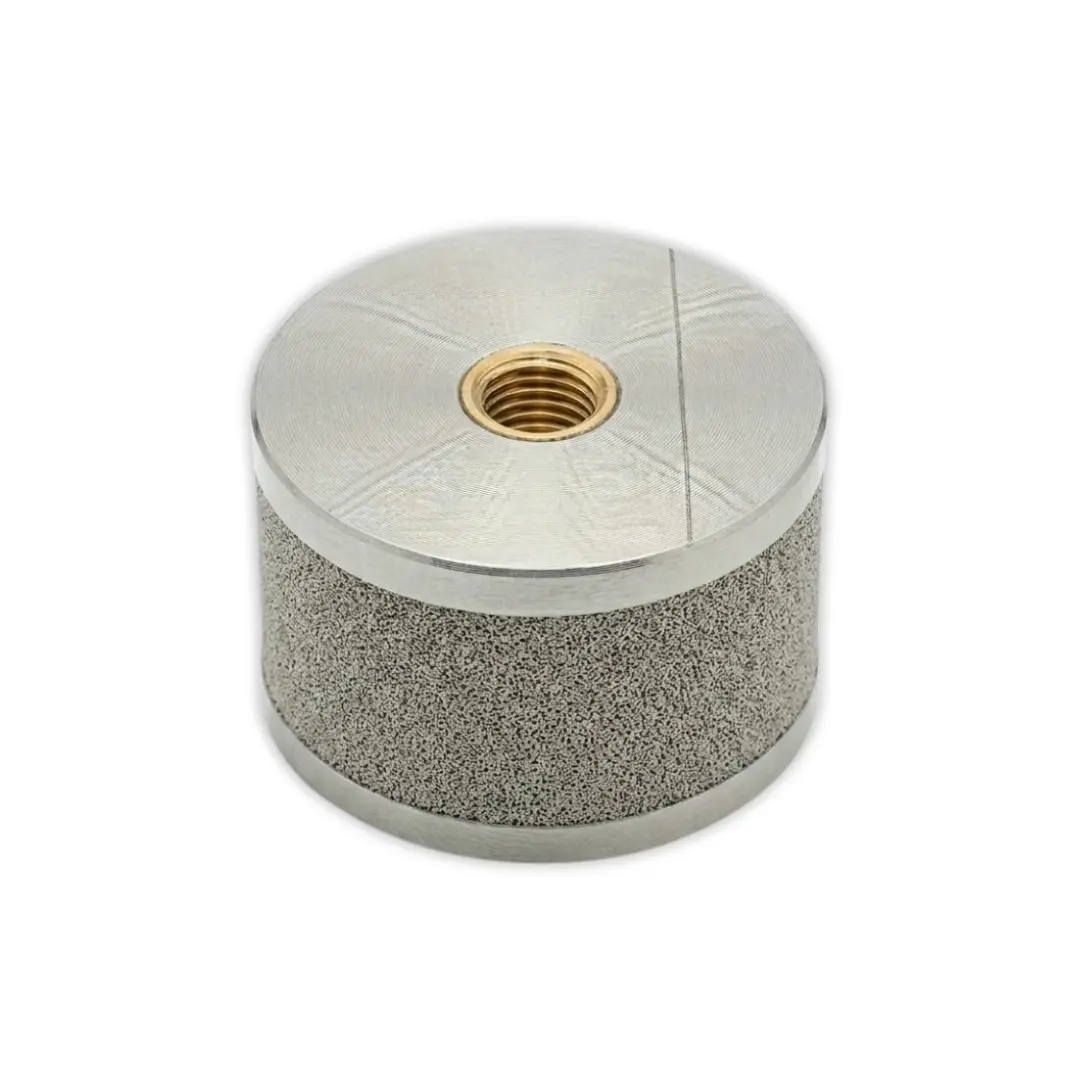

| IP-P-P50-060-406 | No. 7 | Maxi Purge System | 1/4″ NPT Female | 2-3/8″ (60mm) | 1-9/16″ (40mm) |
| IP-P-P50-075-606 | No. 8 | Maxi Purge System | 3/8″ NPT Female | 3″ (75mm) | 2-3/8″ (60mm) |

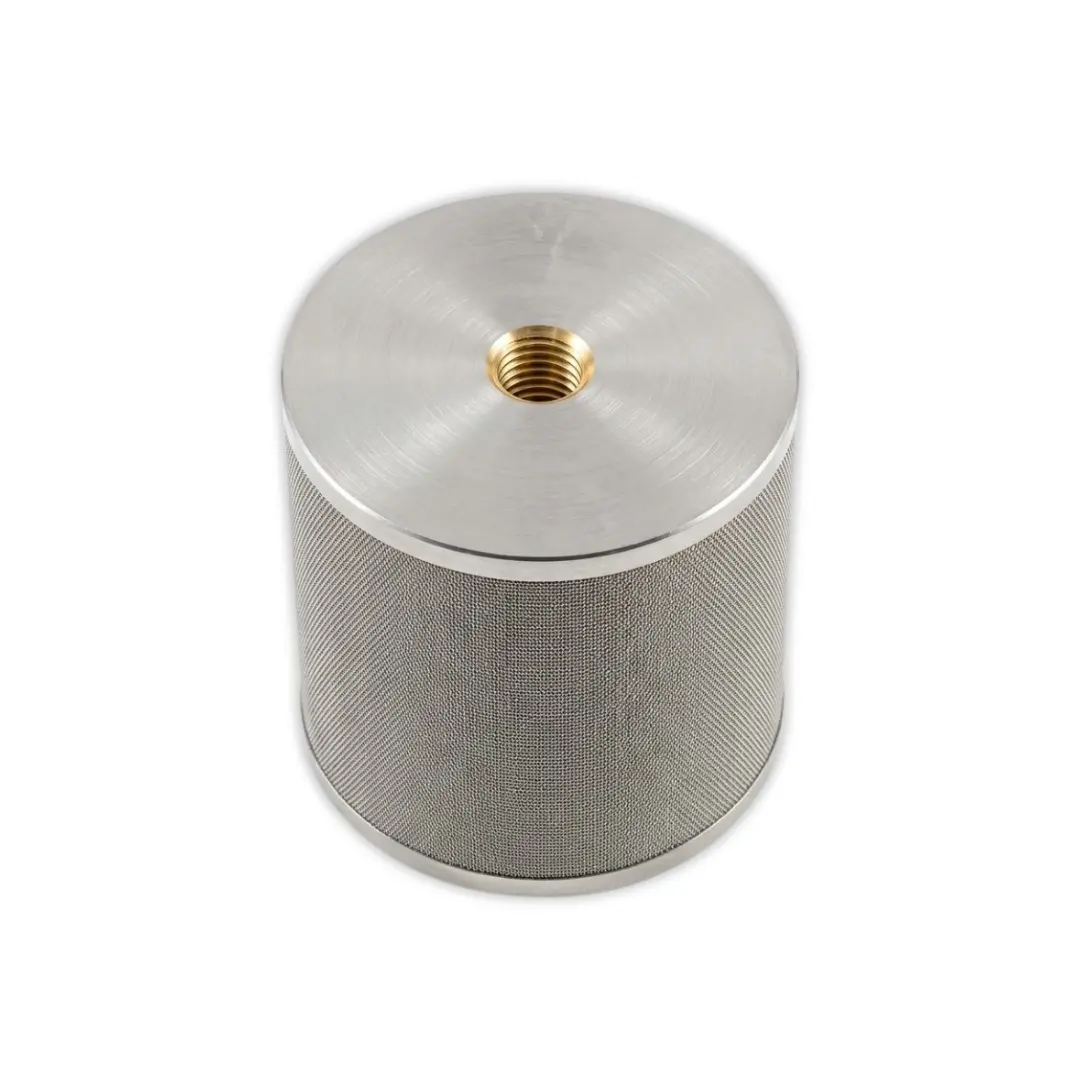

| IP-P-P50-100-106 | No. 9 | Maxi Purge System | 1/2″ NPT Female | 4″ (100mm) | 4″ (100mm) |

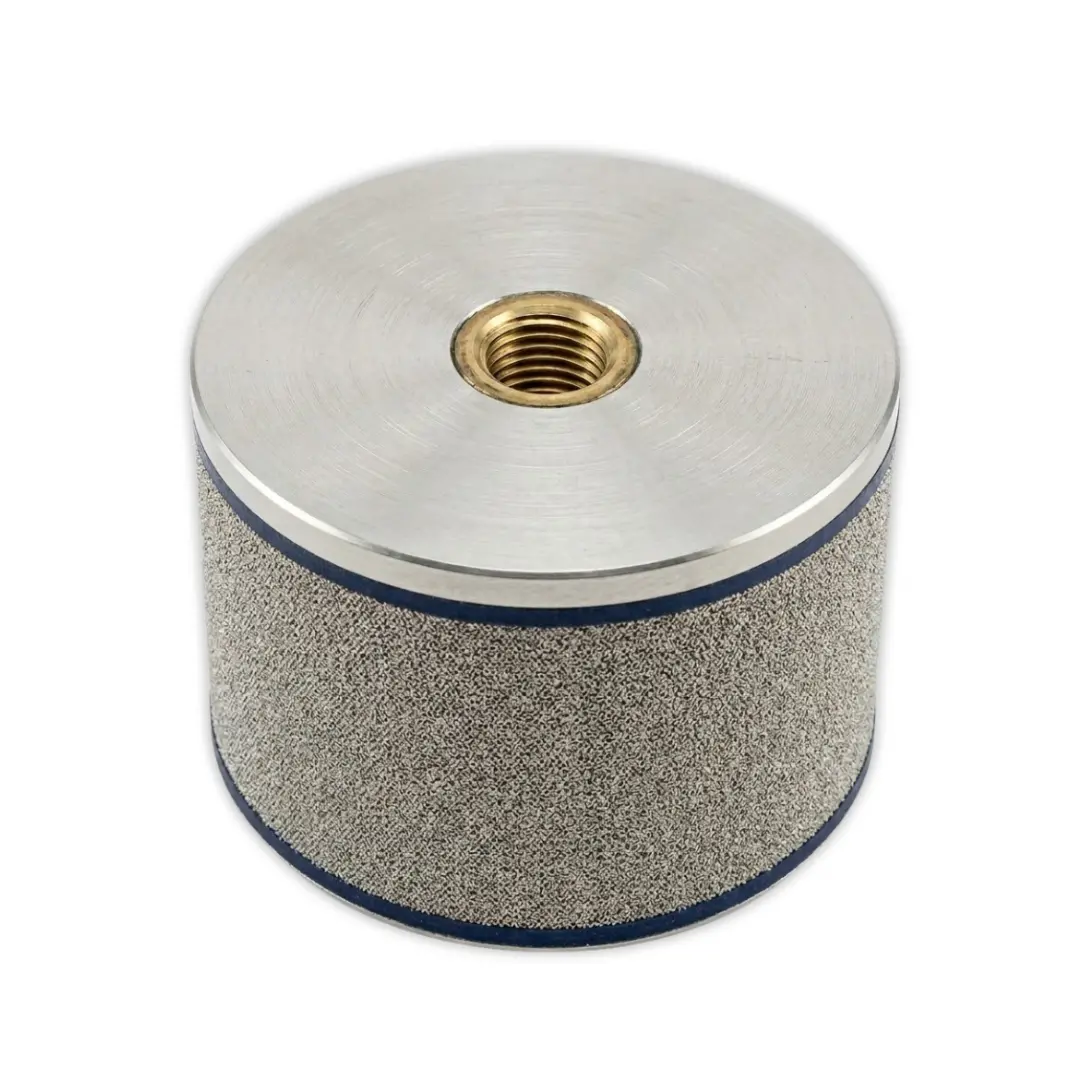

| IP-P-P50-150-106 | No. 10 | Maxi Purge System | 1/2″ NPT Female | 6″ (150mm) | 4″ (100mm) |
MaxiPurge How-To Sheet
