Description

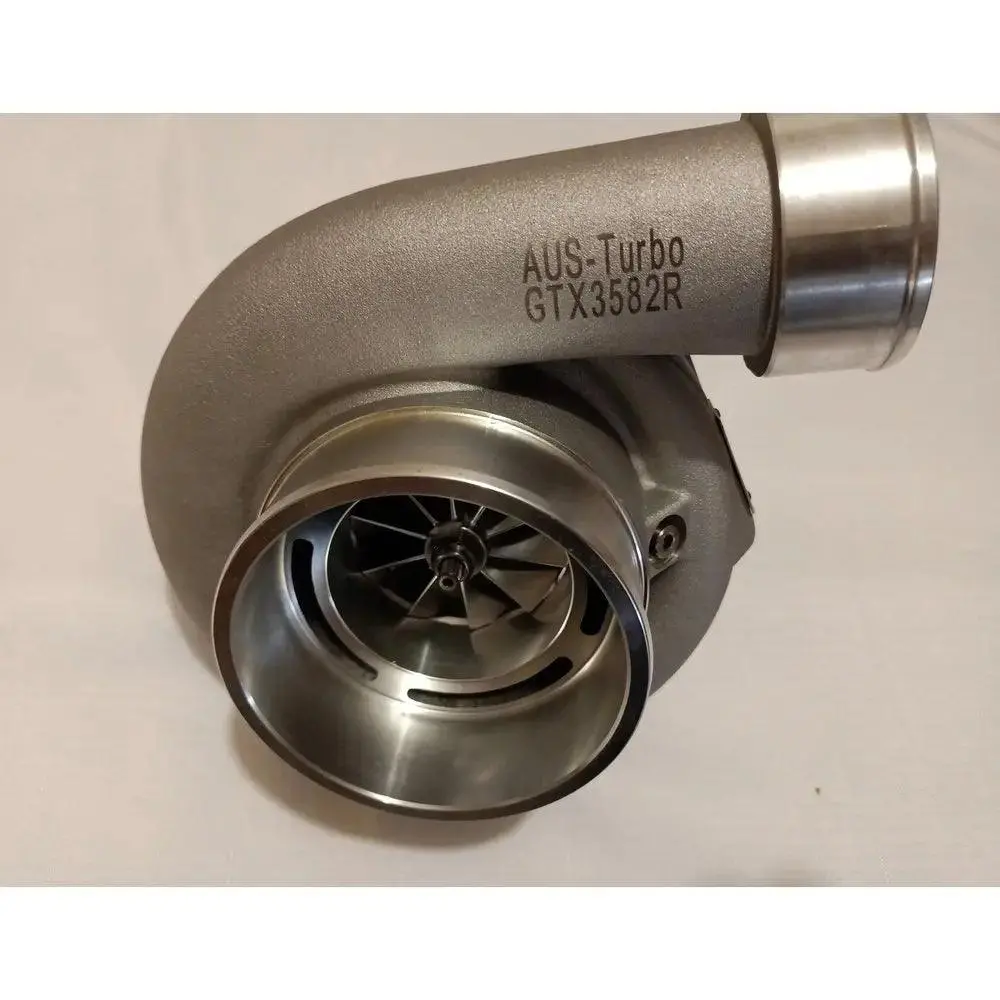

GTX3582R Supercore Suit BA BF FG XR6 Ford Barra upgrades territory F6 Typhoon
GTX3582R Supercore Suit BA BF FG XR6 Ford Barra upgrades territory F6 Typhoon
This supercore is to suit a external gate setup or can be setup to run an internal gate with an additional braket and boost actuator.
Rear housing is not included in the sale
Aus Turbo CHRA parts fitted:
-New high quality Ceramic ball bearing cartridge with
-Peek cages
-New rings
-New seals
-New heat shield
-New back seal plate
-New 10 blade billet compressor wheel.
-New 10 blade turbine wheel
-New Upgraded High flow oil restrictor
-VSR balanced
Please note: I have seen a number of XR6 Turbo failures due to heat as the factory garrett turbos run plastic bearing cages and steel balls, most I have seen are melted or broken on the hot side, the brass bearing cages alone are an upgrade and the ceramic balls take a lot more heat.
In some other cases failures are due to lack of lubrication, lack of oil changes which causes sludge build up.
Factory oil feed line must be replaced, it’s recommended to fit a braided type with a inline filtration device.
There is a little filter/strainer on the oil pressure switch side of feed line that needs to be removed or replaced also.
Any questions I’ll be more then happy to answer. Thanks for looking
6 Months limited warranty from date of sale.
Terms and conditions of warranty.
Vehicle must be serviced every 5000km to 10,000km
or 6 months. proof of service will need to be provided.
A good quality full synthetic oil must be used such as
Penrite 5w-40.
Warranty does not cover abuse, oil starvation or
sludge build up in engine!
You must check that there is adequate oil supply
& a new braided oil line with a filtration device must
be fitted, no exceptions!
Replacement part warranty only.
Warranty will not cover labour or
any other cost incurred.
he CHRA will need to be sent back to
us for inspection before accepting liability
for warranty.
Thank you
