Description
FG XR6 Turbo GT3576R CHRA high perf Suit Garrett FPV G6E XR6T Ford Barra upgrade easy fit
100% Aussie seller, Aussie built here in Australia!

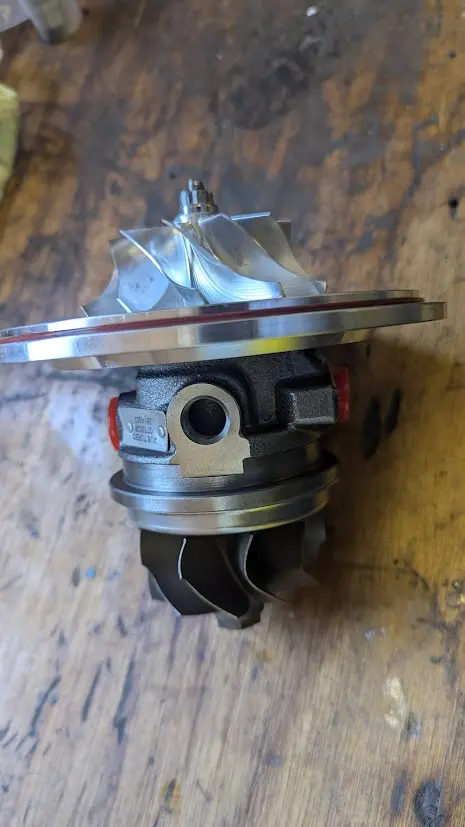

Easy fit drop in CHRA fitted with seal plate & circlip for a much easier installation.
Personal testing & customer feedback
(Fast spool, aggressive boost, some described as savage)
Very good spool time from lower RPM range & very aggressive mid range to higher rpm performance)
This is my personal favourite and is suitable for standard or modified barras
These are an awesome upgrade over the factory CHRA.
They have a really nice whistle on boost & they make the engine pull a lot harder, you won’t be disappointed!
If you use your standard boost actuator you won’t need a tune and won’t log check engine lights for over boosting.
Brand New Aus Turbo Performance CHRA suit Garrett Turbo GT3576R. (Ball bearing turbo) (GT3582R Also available for BA BF XR6 Turbo F6 Typhoon)
This is a straight bolt on upgraded stage 3 CHRA that requires no modifications to your original compressor housing & turbine housing
The bearing housing is a brand new upgraded aftermarket type, it’s stronger then the original & the oil feed holes are slightly larger for better oil flow & less chance of oil starvation.
This Turbo CHRA suits Ford Falcon FG XR6 turbo, G6E, Ford Territory.
(This CHRA will not fit vehicles with the larger GT3582r such as BA BF XR6 turbo or F6 typhoon)
This is an upgraded CHRA for the Garrett GT3576R turbo with 11 blade billet compressor wheel & 9 impeller high flow turbine.
You have a choice of brass cages or peak cages.
Ceramic ball bearings are used for more durability & slightly faster spool
(Proven to be better then steel, Garrett run Ceramic in their later model high end GTX Turbos), built to last!
Aus Turbo CHRA parts fitted:
-New high quality Ceramic ball bearing cartridge with
-brass cages (or Peek).
-New rings (Upgraded Stepped back on turbine side)
-New seals
-New heat shield
-New back seal plate
-New 11 blade billet compressor wheel.
-New 9 blade performance high flow turbine wheel
-New Upgraded High flow oil restrictor
-New upgraded core bearing housing
-VSR balanced
-New seal plate & circlip fitted for easy installation
This Aus Turbo CHRA Feels nice & firm like a brand new Garrett turbocharger is meant to feel, spins nice & free.
Professionally built, All work carried out by qualified Australian mechanic with well over 20 years experience. 100% Positive feedback.
These AUS Turbo CHRA’s are all hand built in Australia & only the highest quality parts have been used.
Please note: I have seen a number of XR6 Turbo failures due to heat as the factory garrett turbos run plastic bearing cages and steel balls, most I have seen are melted or broken on the hot side, the brass bearing cages alone are an upgrade and the ceramic balls take a lot more heat.
In some other cases failures are due to lack of lubrication, lack of oil changes which causes sludge build up.
Factory oil feed line must be replaced, it’s recommended to fit a braided type with a filtration device.
There is a little filter/strainer on the oil pressure switch side of feed line that needs to be removed or replaced also.
I reserve the right to end listing at anytime without notice as I have it advertised elsewhere including gumtree & Facebook.
Any questions I’ll be more then happy to answer. Thanks for looking
6 Months limited warranty from date of sale.
Terms and conditions of warranty.
Vehicle must be serviced every 5000km to 10,000km
or 6 months. proof of service will need to be provided.
A good quality full synthetic oil must be used such as
Penrite 5w-40.
Warranty does not cover abuse, oil starvation or
sludge build up in engine!
You must check that there is adequate oil supply
& a new braided oil line with a filteration device must
be fitted, no exceptions!
Replacement part warranty only.
Warranty will not cover labour or
any other cost incurred.
The CHRA will need to be sent back to
us for inspection before accepting liability
for warranty.
Free local pick up in western sydney or can post Australia wide.
Please note, I reserve the right to end listing at anytime without notice as I have this listed on gummtree & Facebook also
You can also check out our website at 351automotivesolutions.com
International buyers please send a message
