Description

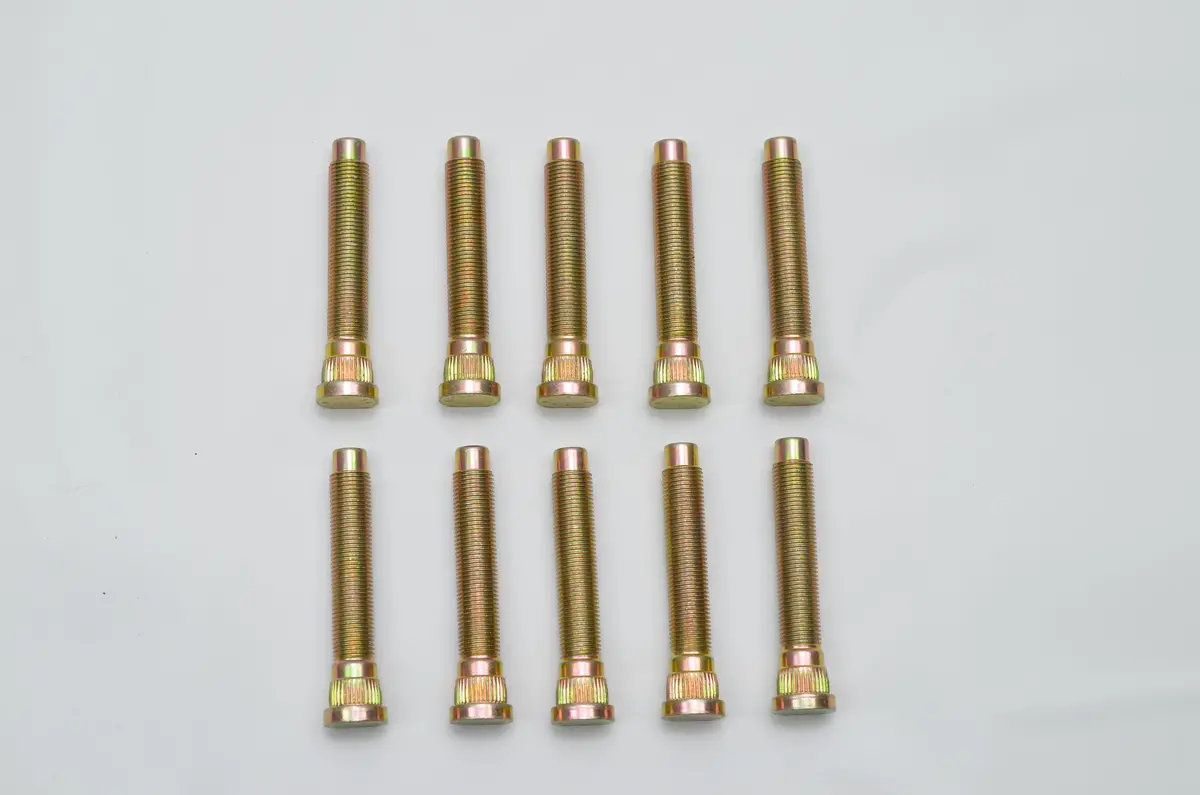

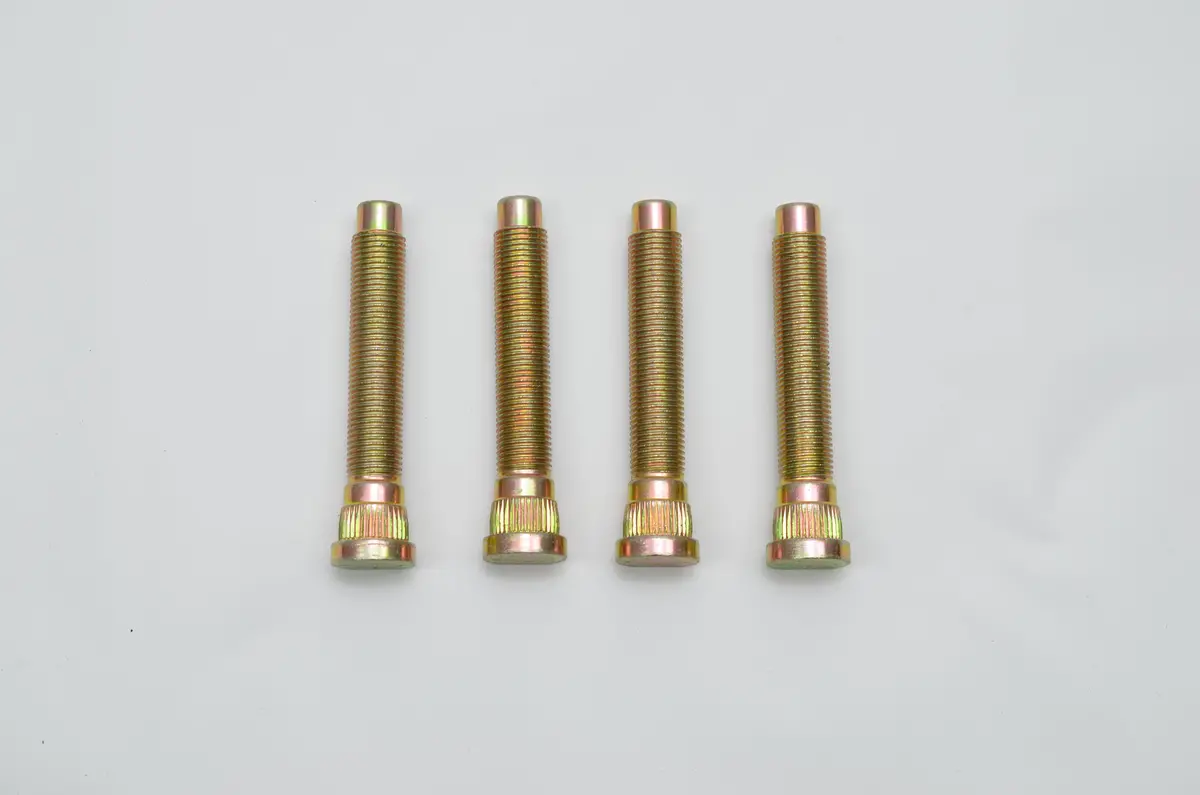

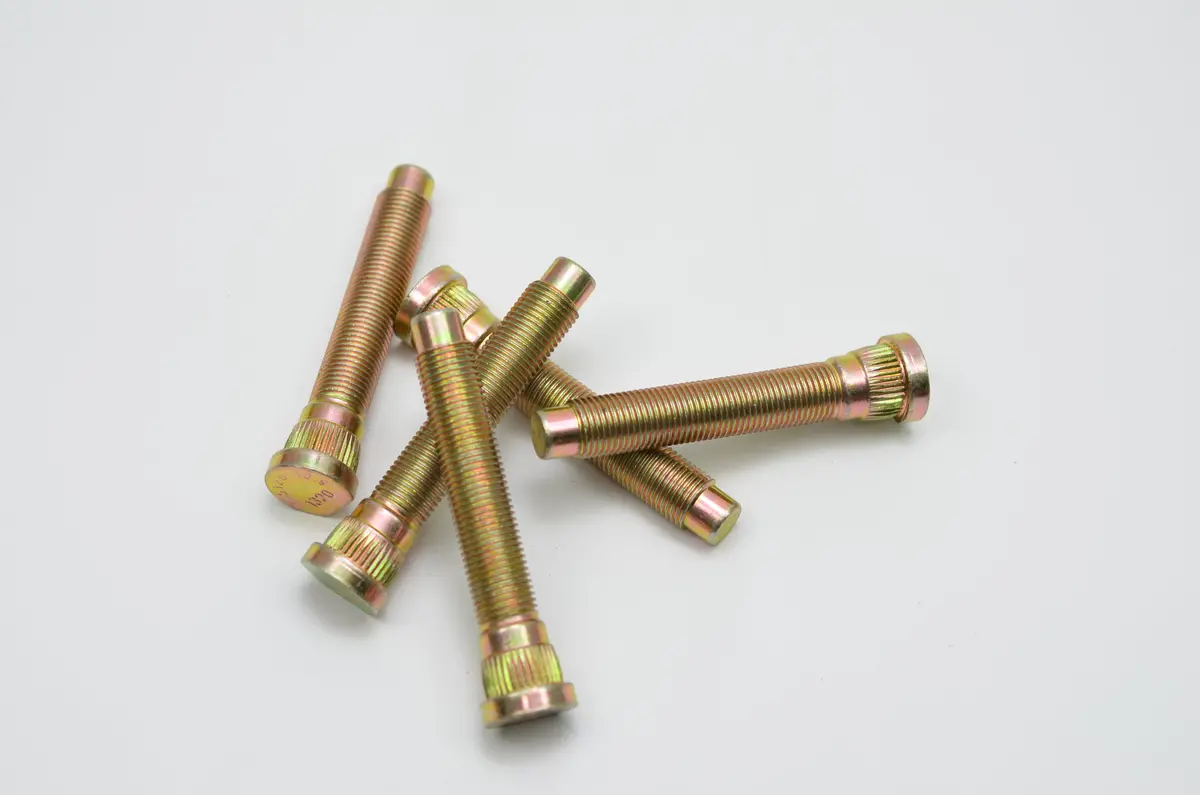

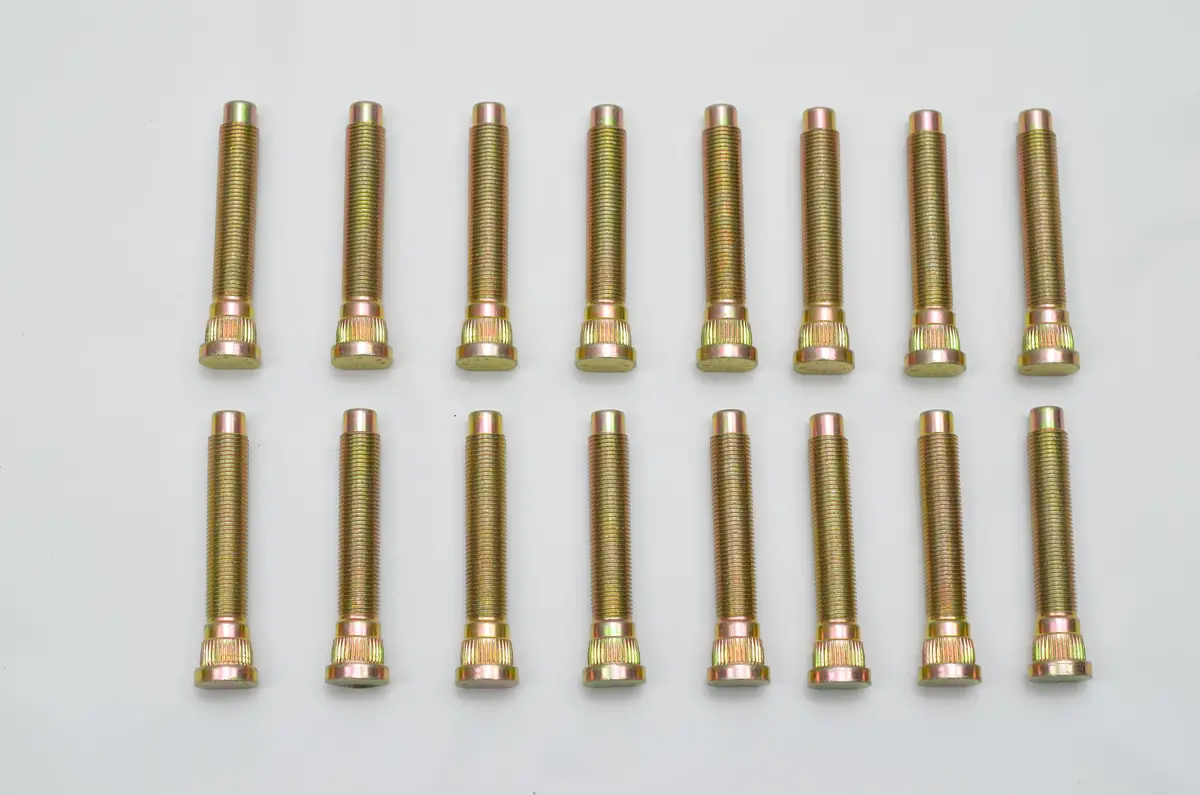

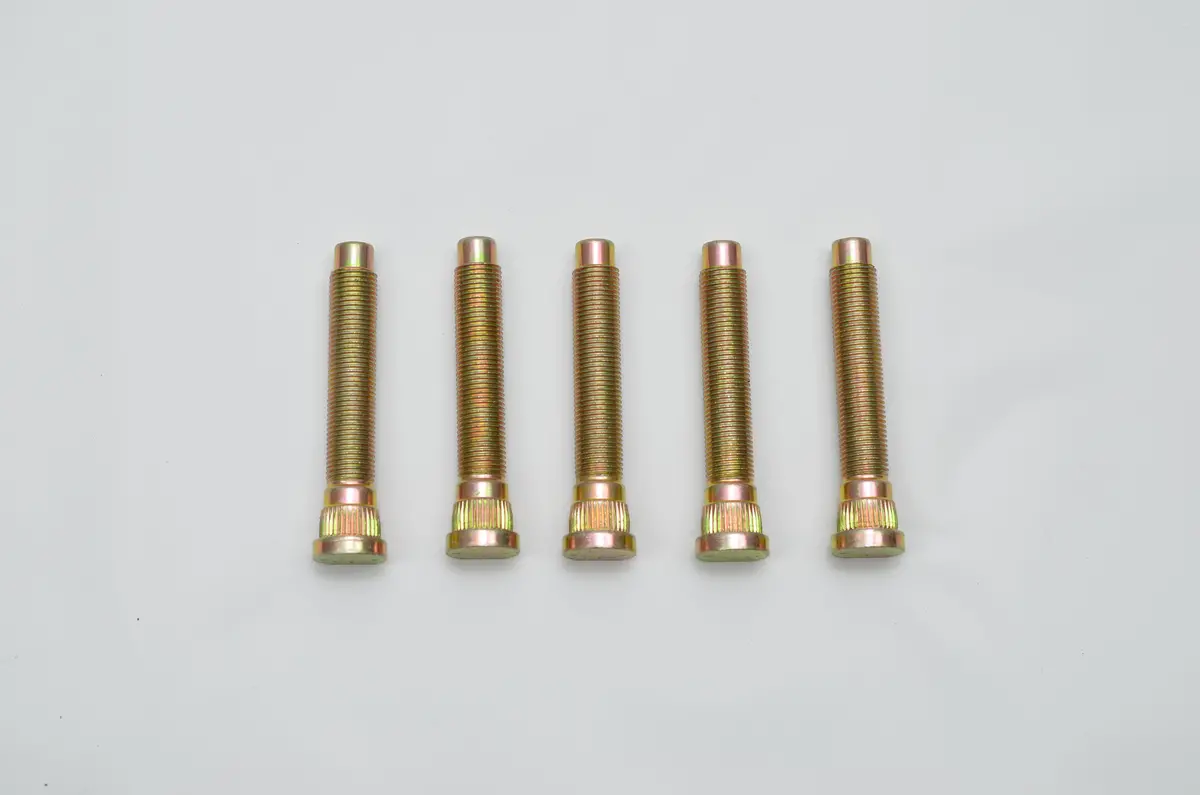

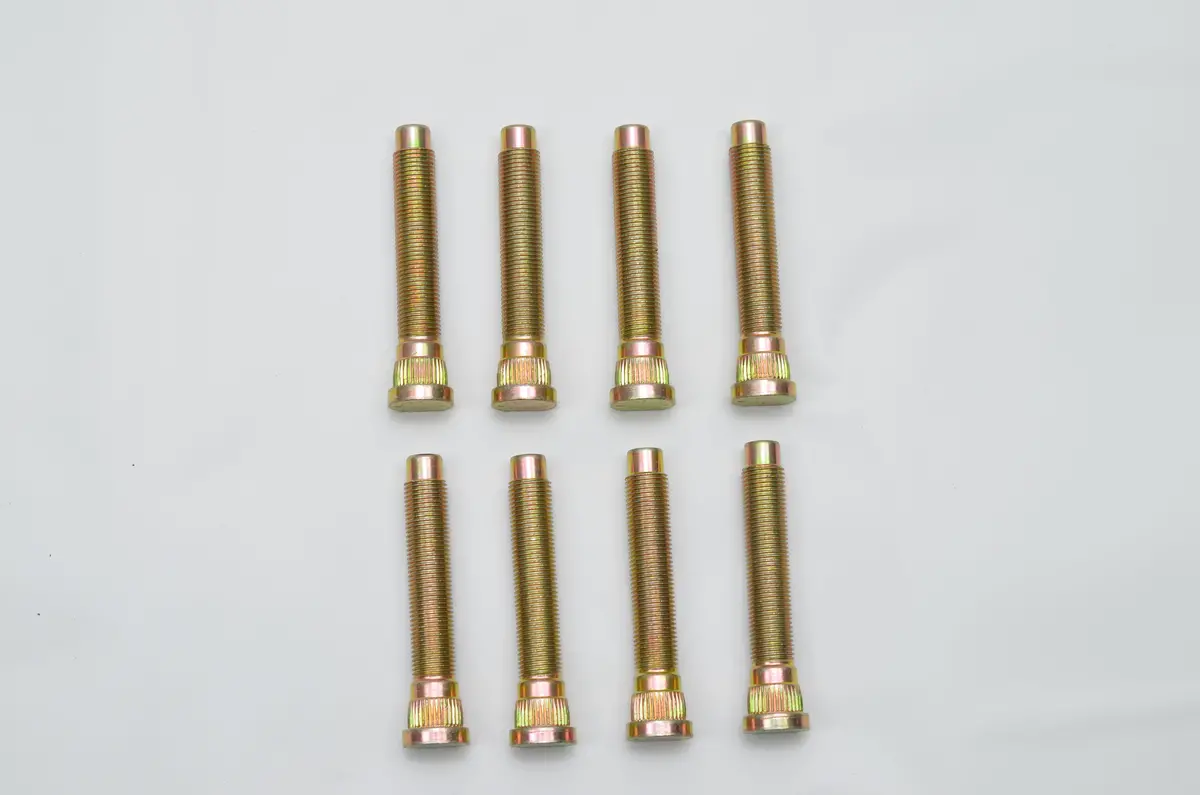

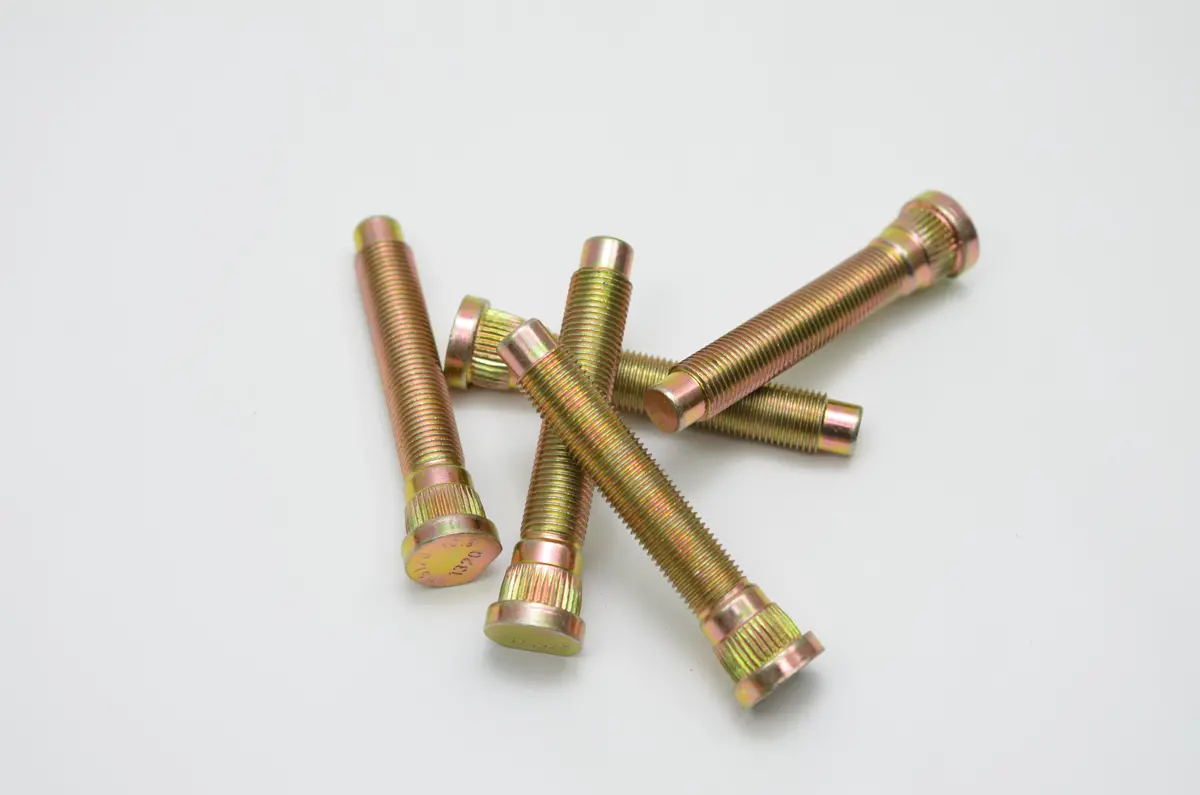

1320 Performance Extended wheel studs. 1320 Performance extended wheels studs are manufactured using high-strength alloy steel.
FITMENT: 05-14 Ford Mustang ( REAR )
PRODUCT DESCRIPTIONS
1320 Performance extended wheels studs are manufactured using high-strength 10.9 Grade alloy steel.
These extended wheel studs are designed and intended to be used with any
open-ended lug nuts on racing slicks, or when wheel spacers are
required.
Our extended stud replacements are designed to press-fit into the original hole in the OEM hub with a hydraulic press, Aftermarket hub might have a different Knurl diameter than stock so they are not recommended.
| Specifications | |
|---|---|
| Knurl Diameter | 0.615˝ |
| UHL | 3.115˝ |
| Knurl Length | 0.300˝ |
| Nose Length | 0.300˝ |
| Diameter – Pitch | 1/2-20 |
| Wheel Stud Hole Size – Cast Iron/Steel Hub | 0.599˝ – 0.609˝ |
| Cast Iron/Steel Hub Drill Bit Size (actual dim.) | 19/32˝* (0.594˝) |
| Wheel Stud Hole Size – Aluminum Hub | 0.599˝ – 0.605˝ |
| Aluminum Hub Drill Bit Size (actual dim.) | 19/32˝* (0.594˝) |
