Description
BuildPro Alpha 5/8″ 5-Sided Tabletop, 8′ x 4′ Nitrided
All top and side plates of Alpha tabletop are constructed from heat-treated steel, hardened to 550 Vickers, and finished with a nitrite coating with a case depth of .0004-.0008″.
The precision-machined self-locating steel plates and reversible top plates enable each table plate to be removed and flipped 180 degrees to expose a new working surface if the top side has been damaged or worn down.
The five-sided tabletops feature a 5-1/2″ side plate combined with the top plate to create a 6″ height. Side plates feature an extended 5-borehole pattern for added precision and adjustability.
* All Alpha 5/8 tabletops are compatible with both round and square legs, except for the 6′ x 3′ size, which is not compatible with square legs.
Table Accuracy

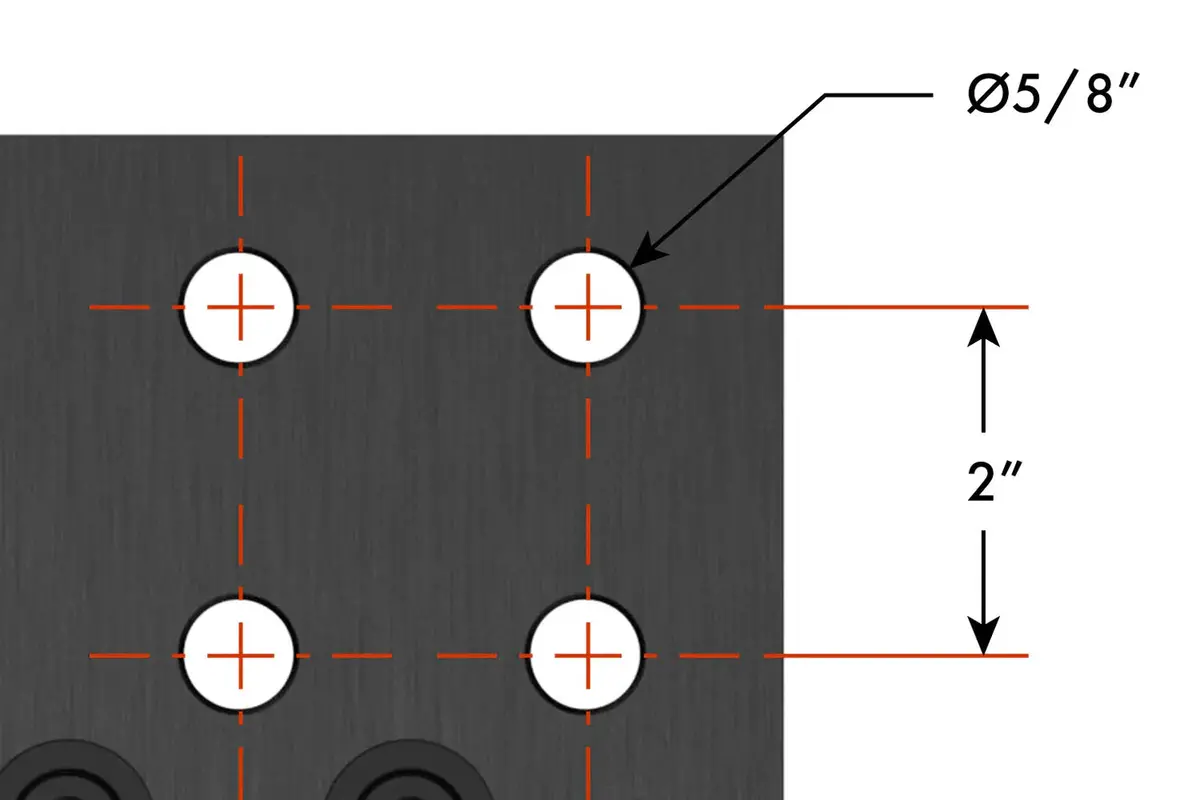

| Hole Diameter: | 0.625″ + .002 / -.000 |
| Hole Spacing: | 2.000″ ±0.001 |
| Table Flatness: | ±0.005 per 24″ x 24″ |
| Plate Thickness: | 0.47″ ±0.004 |
| Tabletop Finish: | Nitrided (Heat-Treated) |
| Surface Hardness: | 58-62 HRC |
| Coefficient of Friction: | 0.37 |
Top Plate
| Material: | P20 |
| Hardness: | 58-62 HRC |
Side Plate
| Material: | Q345B |
| Hardness: | 50-55 HRC |
